Why it is required to enter a concrete cover in SHAPE‑MASSIVE? The position of the individual reinforcement bars is anyway specified directly in the cross-section definition.

Answer

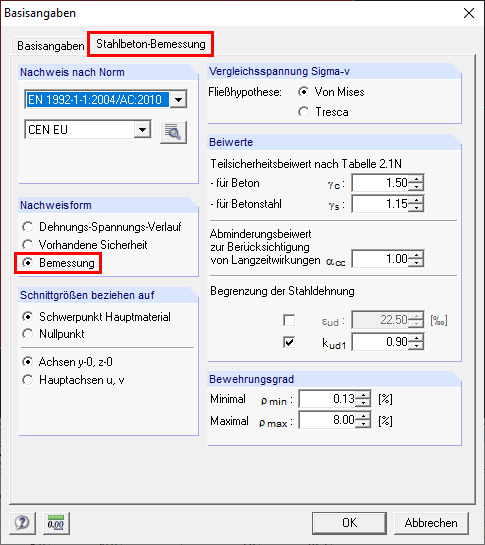

In SHAPE‑MASSIVE, you can select the "Design" option for the reinforced concrete design.

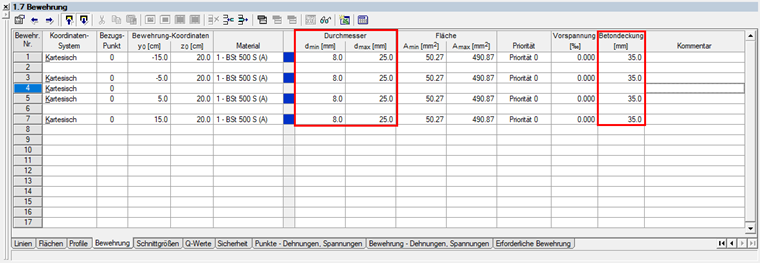

In this case, an area of the possible reinforcement diameters can be defined when entering the reinforcement bars. In this defined area, the program can subsequently design a diameter which is in accordance with the bending design.

By specifying the concrete cover, it is possible to check whether the designed reinforcing steel diameter can be inserted or not.

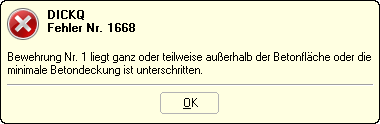

If there is too large concrete cover or the required diameter is too great, you will get an error message after having started the calculation.

Keywords

Concrete cover Reinforcement layout
