Walter Fröhlich Modeling | Loading RFEM

I have got a model with a multi-part curved layout of the line. How can I create a single line from it?

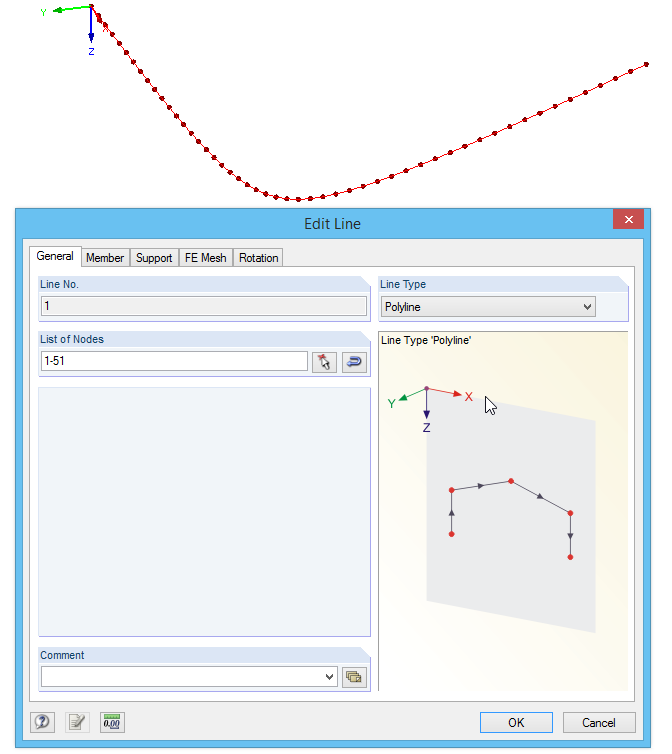

First, it is necessary to remove the individual lines because it is not possible to merge the sub-lines into an overall line. If only a few nodes are available, they can be selected one after the other for the line definition. It is important that the numbering is continuously increasing or decreasing to ensure the functioning of a selection by means of a selected area in case of a system with many nodes. If necessary, an automatic numbering should be carried out.


Merge lines Catenary Spline Polyline
