FAQ 003609 EN

25 September 2019

Sonja von Bloh General RFEM RSTAB

In the graphic, neither the work window nor the printout report shows information about the displayed result (for example, internal force My, LC1: Self-weight). How can I activate the output?

Answer

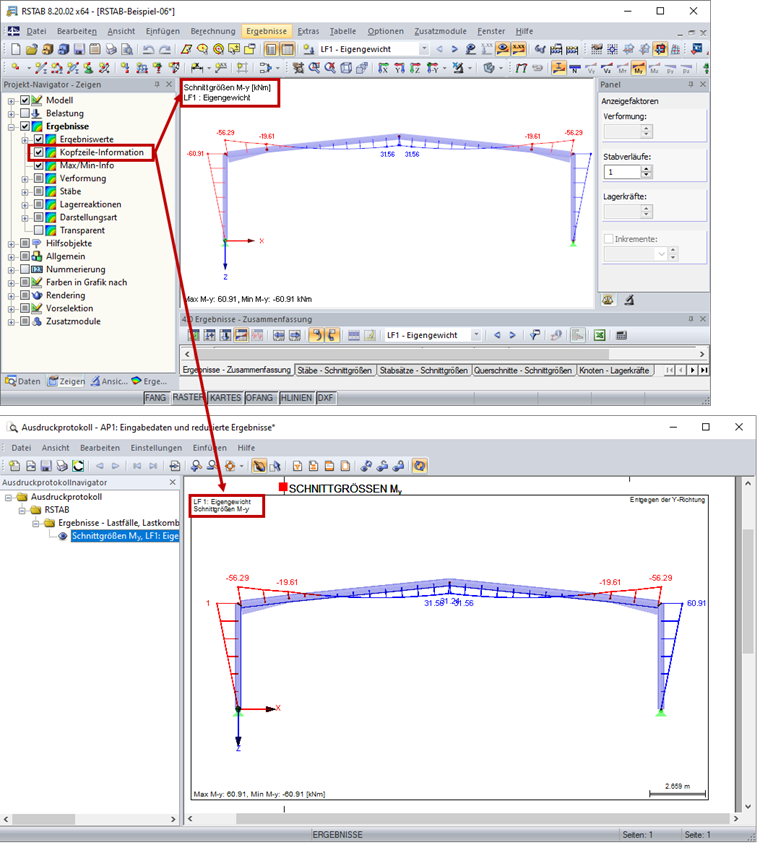

In the Project Navigator - Display, activate the "Header Information" check box under "Results" so that this information is displayed (Figure 1).

Keywords

Header information
