Is it also possible to graphically display the intermediate values or design details from the calculation in RF-CONCRETE Surfaces?

Answer

No, this is unfortunately not possible.

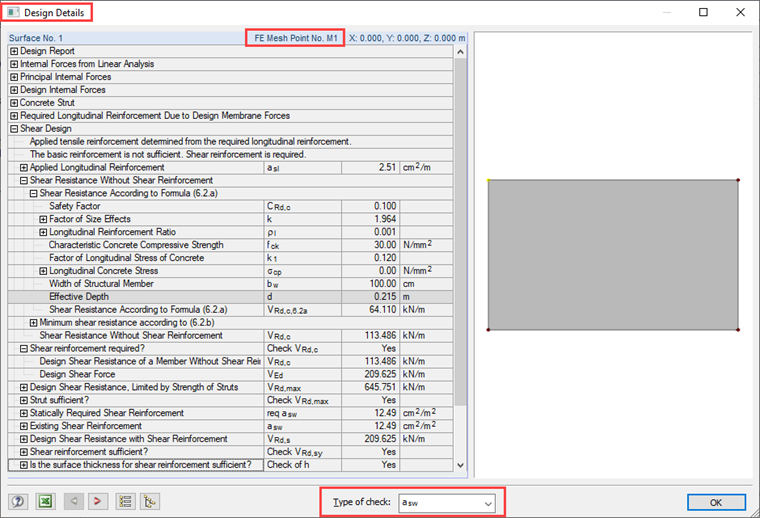

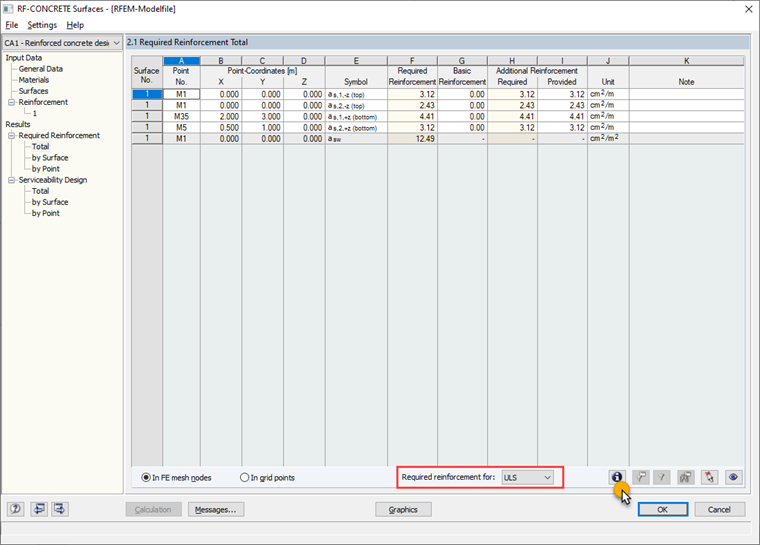

The intermediate values from the calculation (for example, the applied static depth d for the shear force design) are only available for the selected FE node or grid point when you open the "Design Details" dialog box. But not for all FE mesh nodes of the designed surfaces.

Therefore, these intermediate values can not be used for a graphical display on the model, but only in tables in the design details.

Keywords

Design Detail Intermediate value Result Detail
