FAQ 004173 EN

30 October 2019

Markus Baumgärtel Display Settings RFEM RSTAB

For some reason, the prestresses are no longer displayed graphically for me. How can I display it again?

Answer

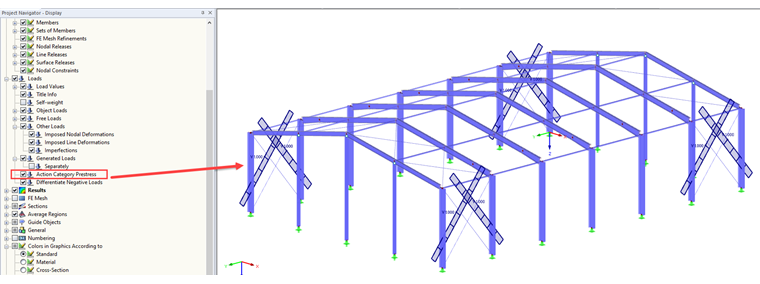

Mostly, it is in this case so that the 'Action Category - Prestress' in the 'Project Navigator - Display' is hidden.  All loads contained in a load case with the action category ‘Prestress’ are no longer displayed in this case. When activating the function, the loads should be displayed as usual.

Keywords

Prestress
