Answer:

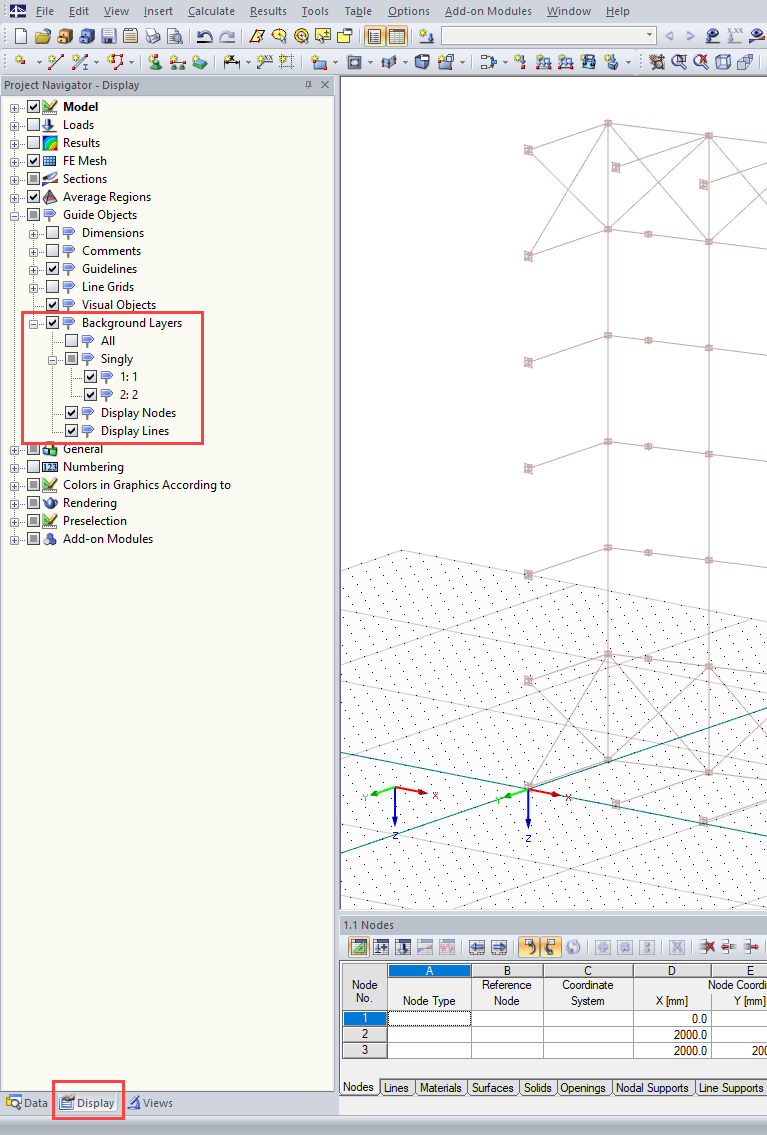

The background layers can be hidden or displayed in the Display Navigator under Guide Objects → Background Layers. The visibility can be defined individually or for all.
