FAQ 004220 EN

25 November 2019

Sonja von Bloh Display Settings SHAPE-THIN

Where is it possible to change the display properties of the cross-section outline?

Answer

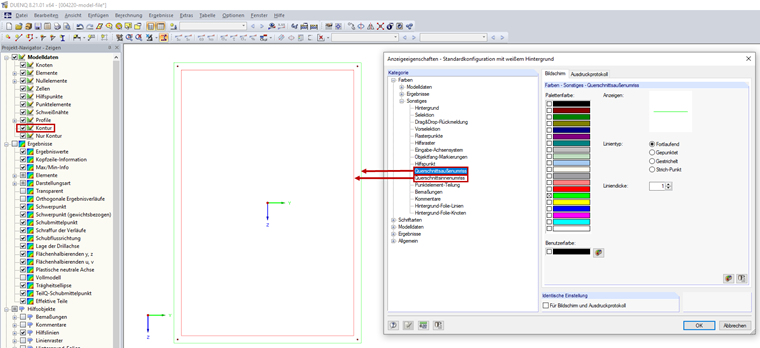

You can set the display properties of the cross-section outline in the Display Properties dialog box (Options → Display Properties → Edit menu). The settings can be found in the Colors → Extras → External Cross-Section Outline or Colors → Extras → Internal Cross-Section Outline category (see Figure 1). The color, type, and thickness of the line can be set separately for the screen and the printout report.

Keywords

Display property Cross-section outline Cross-section contour Contour External cross-section outline Internal cross-section outline
