What happens if I activate the "Soil failure" function in RF-SOILIN?

Answer

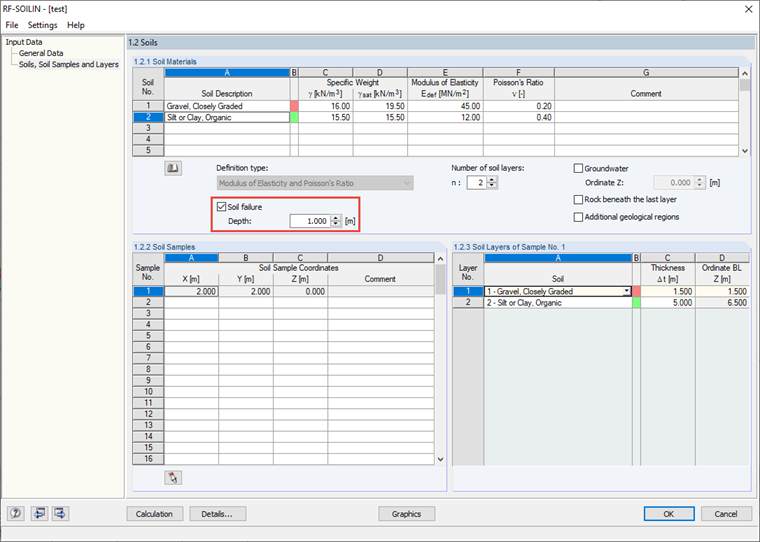

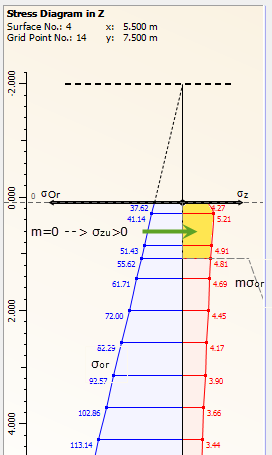

The zero coefficient of structural soil strength can be used for better convergence of deeper excavations or small loading. Damaged soil have no structural soil strength. Therefore, it better picture damaged subsoil in the upper layers with this function. The possible entry for the depth of the soil failure is from 0.0 m to 1.0 m.

Keywords

Soil failure Stress Diagram
