Is it possible to only transfer a specific selection of elements to the wind tunnel in RWIND Simulation?

Answer

Yes, it is; the interface application "Simulate and Generate Wind Loads" with the "Export only active objects" option under the "Settings" tab controls which objects should be transferred to the wind tunnel of RWIND Simulation.

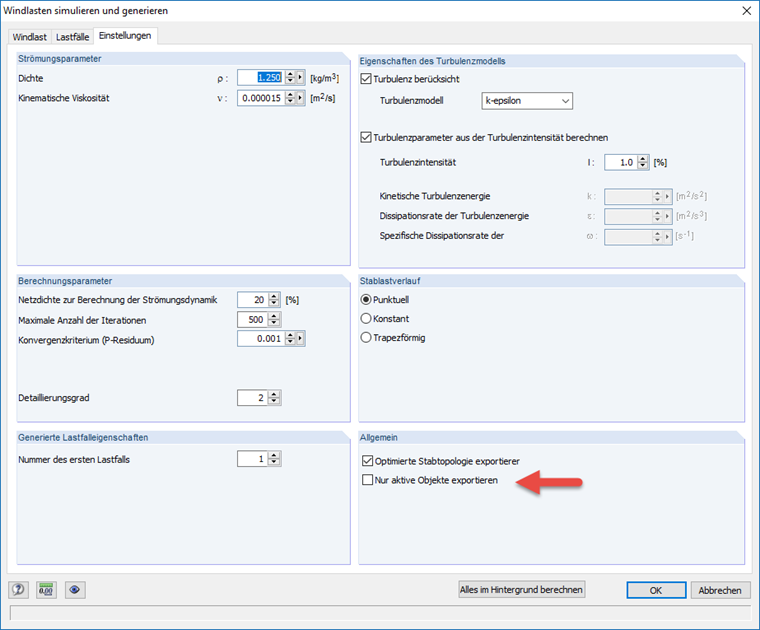

Figure 01 - Simulate and Generate Wind Loads

  • If the "Export only active objects" option is not selected, all objects available in the model are always placed in the wind tunnel.

  • In the other case, the program only moves the objects in the currently displayed visibility of the model into the wind tunnel. The other hidden objects are not taken into account.

Keywords

Visibility Selection Element selection Interface
