26 March 2020
004392
I would like to use the CRANEWAY add-on module to design a suspension crane. Where are the design points 0, 1, and 2 for the stress analysis on the bottom flange and for the fatigue design?
Answer

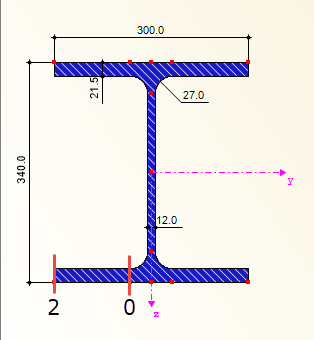

- Design Point 0
A periphery of the flange at the web edge or at the fillet start - Design Point 1

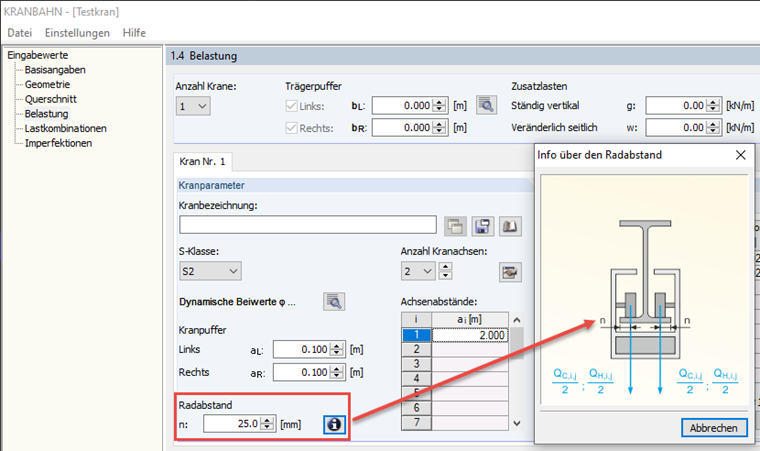

A flange at load application point (this can be checked as wheel spacing in Window 1.4) - Design Point 2
The flange edge
Keywords
Design points Suspension crane Fatigue design Bottom flange Bottom flange bending Flange edge Load application point Fillet start
