Is it also possible to manually enter the load for the punching shear design in RF‑PUNCH Pro?
Answer
Yes, it is possible in Window "1.5 Punching Nodes."

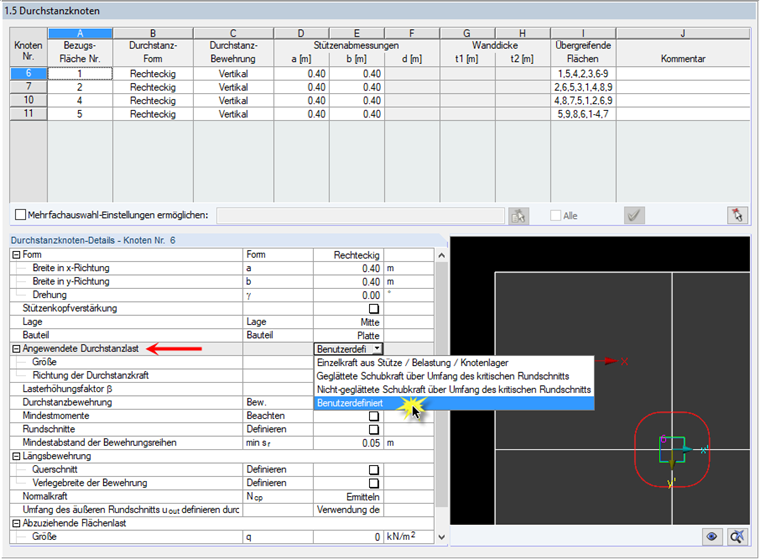

Figure 01 - User-defined punching load
For example, this can be used if the determination of the punching load by using the smoothed or unsmoothed distribution of shear forces in the control perimeter is negatively affected by singularities.
Keywords
Load Punching shear User-defined Punching load Perimeter
