Answer:

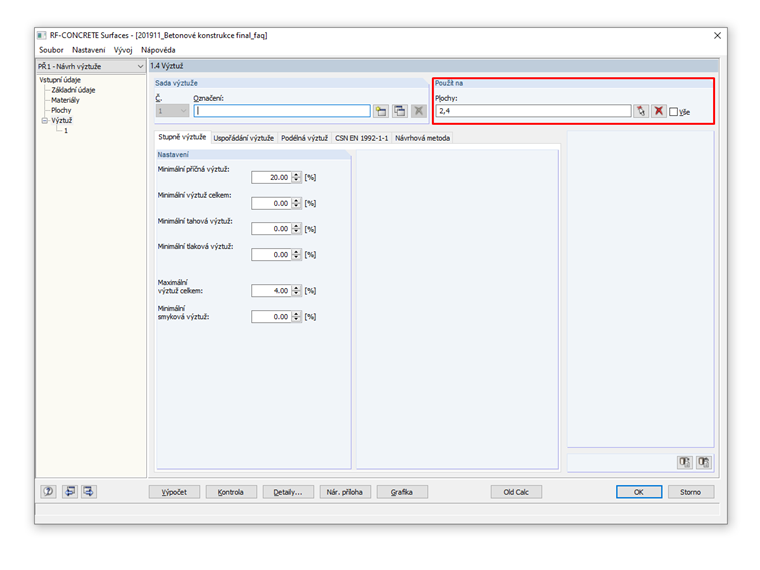

Open Window 1.4 Reinforcement and clear the "All" checkbox. Then select the surfaces numerically or graphically using the arrow icon.
Question
The RF‑CONCRETE Surfaces add-on module designs all surfaces in the model. How do I design only the selected surfaces?
