How can I open and close RFEM/RSTAB in the background via the COM interface?

Answer

By initializing a variable of the Application (interface) type with "new", RFEM/RSTAB is started in the background. With this variable, you can also create a new model using the "CreateModel" method, or close the program using the "Close" command.

The following example shows how to start RSTAB, create a model with a node in the program, and close the program:


Sub RSTAB_open_close()

Dim filename As String
filename = Application.ActiveSheet.Cells(7, 3)

'   start rfem
Dim iApp As RSTAB8.Application
Set iApp = New RSTAB8.Application

iApp.LockLicense
iApp.Show

On Error GoTo E

    '   create model
    Dim iMod As RSTAB8.IModel2
    Set iMod = iApp.CreateModel(filename)

    '   add data to model
    Dim nd As RSTAB8.Node
    nd.no = 10
    nd.X = 1
    nd.Y = 2
    nd.Z = 3

    Dim iModdata As RSTAB8.iModelData
    Set iModdata = iMod.GetModelData

    iModdata.PrepareModification
    iModdata.SetNode nd
    iModdata.FinishModification

    iMod.Save filename


E:  If Err.Number <> 0 Then MsgBox Err.description, , Err.Source

    Set iModdata = Nothing
    Set iMod = Nothing
    iApp.UnlockLicense
    iApp.Close
    Set iApp = Nothing

End Sub

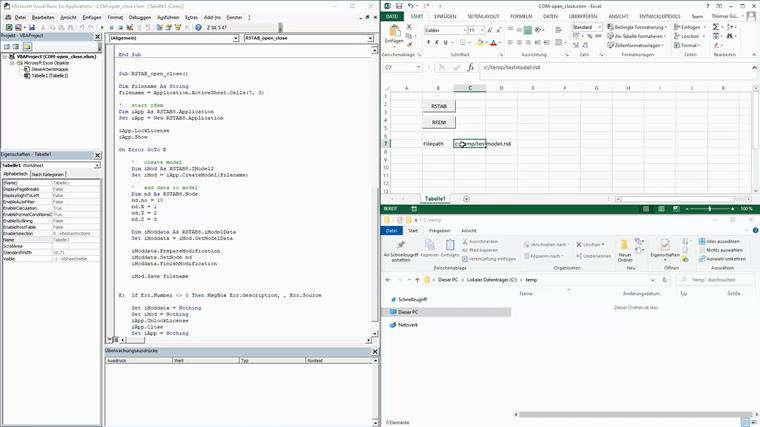

The "iApp.Show" command is optional. This allows for displaying the program normally, not in the background.

Under Downloads, you can find an Excel macro with the subroutines for RFEM and RSTAB.

Please note that the folder, where the file is created, must exist.
