In RFEM 5.23, changes have been made to the calculation kernel which lead to a slightly different, more "sensitive" behavior of the nonlinear supports.

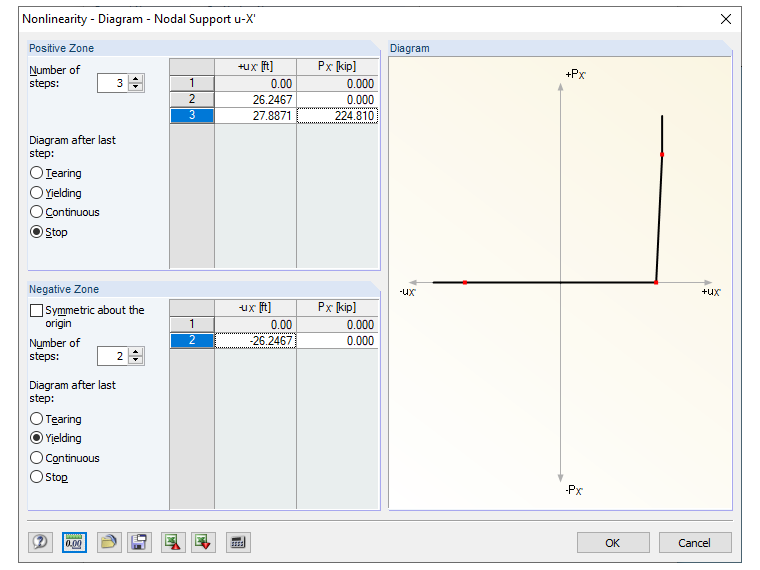

In this case, it is helpful to adjust the diagrams for the nonlinear supports slightly: Instead of applying the stop directly, you could define a slightly "smoother" transition.
On our website, you can find a list of the update reports of our programs.
