Increasing Minimum Shear Reinforcement in RF-CONCRETE Surfaces

The minimum of the entered shear reinforcement can be controlled by two settings:

1. Window 1.4 – Reinforcement Ratios – Minimum Shear Reinforcement Ratio
2. Window 1.4 – depending on the standard, for example, for DIN EN 1992‑1‑1 – Minimum Shear Reinforcement

Please note that the minimum shear reinforcement according to DIN EN 1992‑1‑1 refers to the width-height ratio of the entire slab. Since RF‑CONCRETE Surfaces is suitable for any surfaces and the individual FE elements are designed, this ratio must be determined and entered manually.

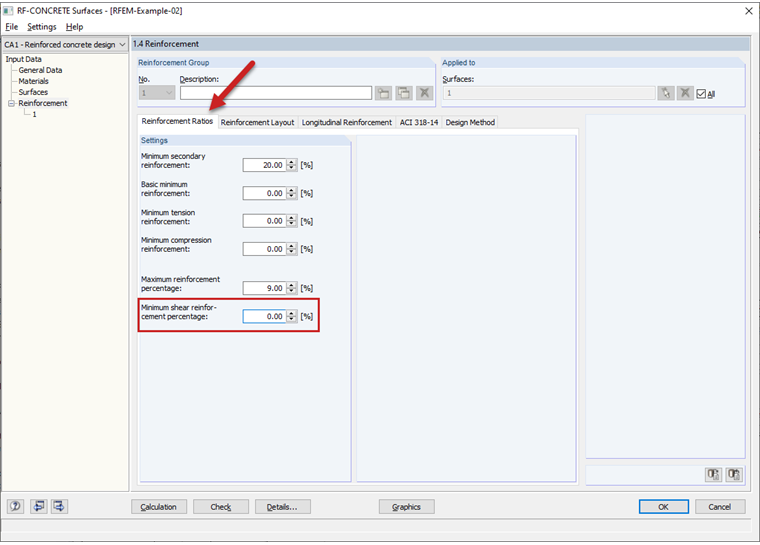

Window 1.4 - Reinforcement Ratios: Minimum Shear Reinforcement Ratio

Window 1.4 - DIN EN 1992-1-1: Minimum Shear Reinforcement
