Question

How can I switch to full-screen mode on the Geo-Zone Tool website "Snow Load, Wind Speed, and Seismic Load Maps"?

Answer:

The Geo-Zone Tool website "Snow Load, Wind Speed, and Seismic Load Maps" shows a map application for determining loads specific for a certain location as an embedded solution in the global Dlubal website.

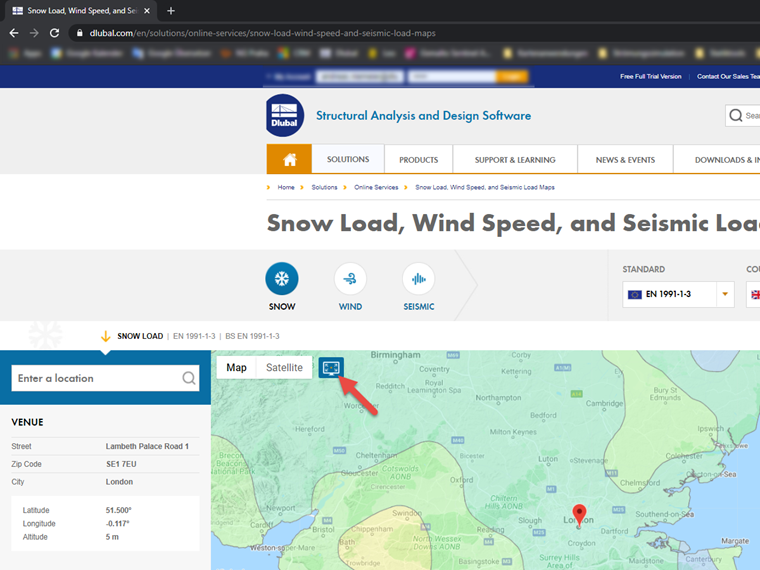

By clicking the "Switch to Fullscreen Mode" button, you can use the map application over the entire window with no general website controls.

FAQ 004976
EN-US | Flag FAQ
FAQ 004976 | How can I switch to full screen mode on the Geo-Zone Tool website "Snow Load Zones ...
Geo-Zone Tool in Full Screen Mode
Geo-Zone Tool in Full Screen Mode
