Answer:

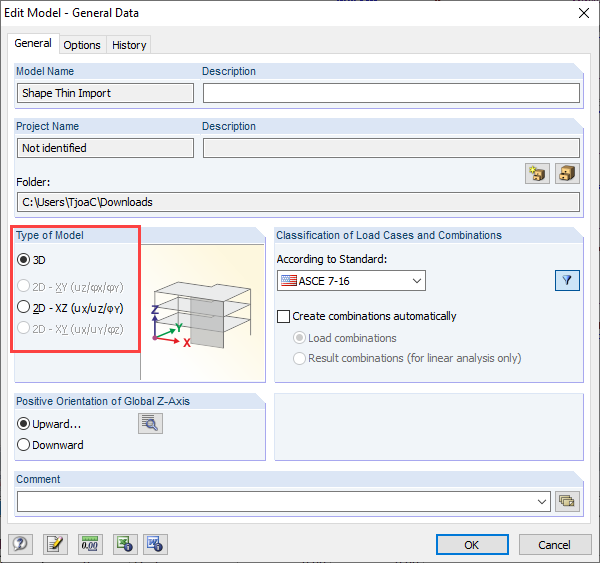

In the General Data, change the Type of Model from 2D to 3D. This will automatically adjust the member orientation to its geometric axis.
Cross-section Rotated when Import into RFEM
My member is oriented at the inclination of principal axis when I import from SHAPE-THIN to a 2D RFEM model. How do I fix this?
