Answer:

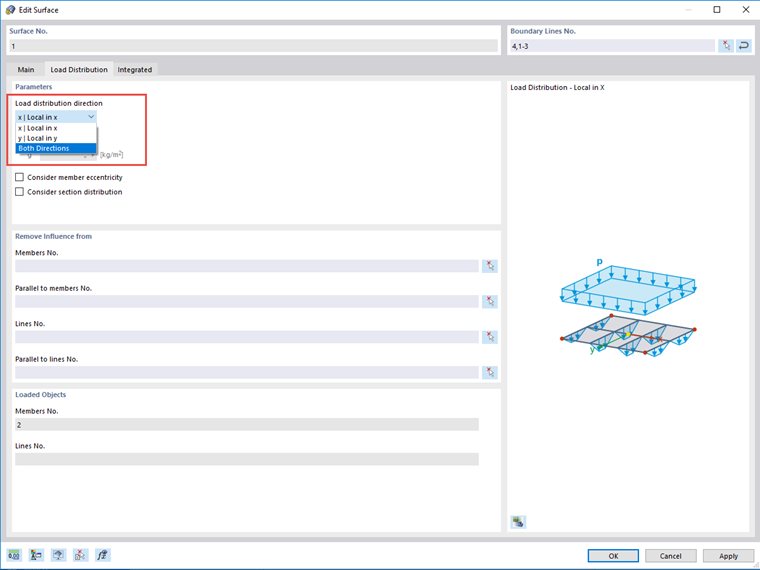

In this case, set the load distribution direction in both directions in the "Edit Surface" dialog box; see Image 01.
Directions of Load Distribution
I have a girder grid with members in the X- and Y-directions. After applying a load using the "Load Distribution" surface type, the members are only loaded in one direction.
How can I load all the members?
