Interface to MS Excel

Is the import from Microsoft Excel still available in RFEM 6?

Answer:

Yes, it is. It requires a plug-in installed in Microsoft Excel, which you can find in the Dlubal installation folder under Tools; see the following path (depending on the version number):

C:\Program Files\Dlubal\RFEM 6.01\tools\ExcelAddIn
C:\Program Files\Dlubal\RFEM 6.02\tools\ExcelAddIn

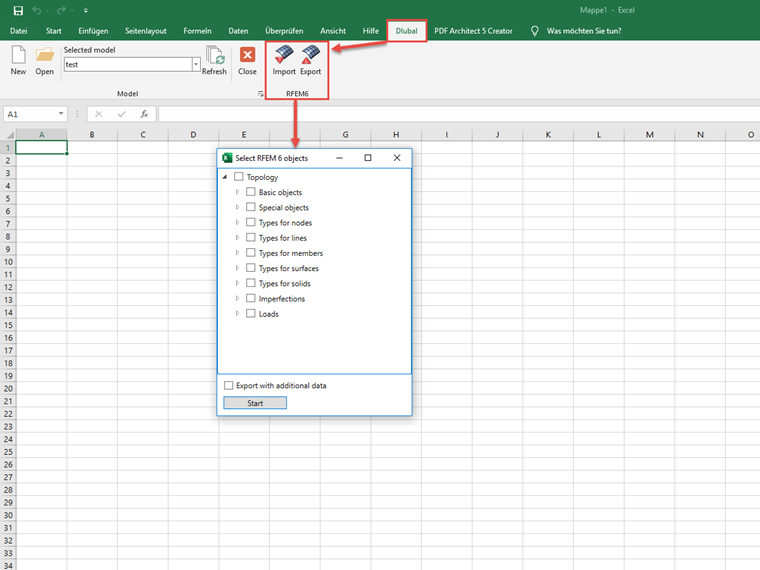

After installation, you can find the import and export function in MS Excel under the "Dlubal" tab; see the image.

FAQ 005188 | Is the import from Microsoft Excel still available in RFEM 6?

MS Excel Plug-in

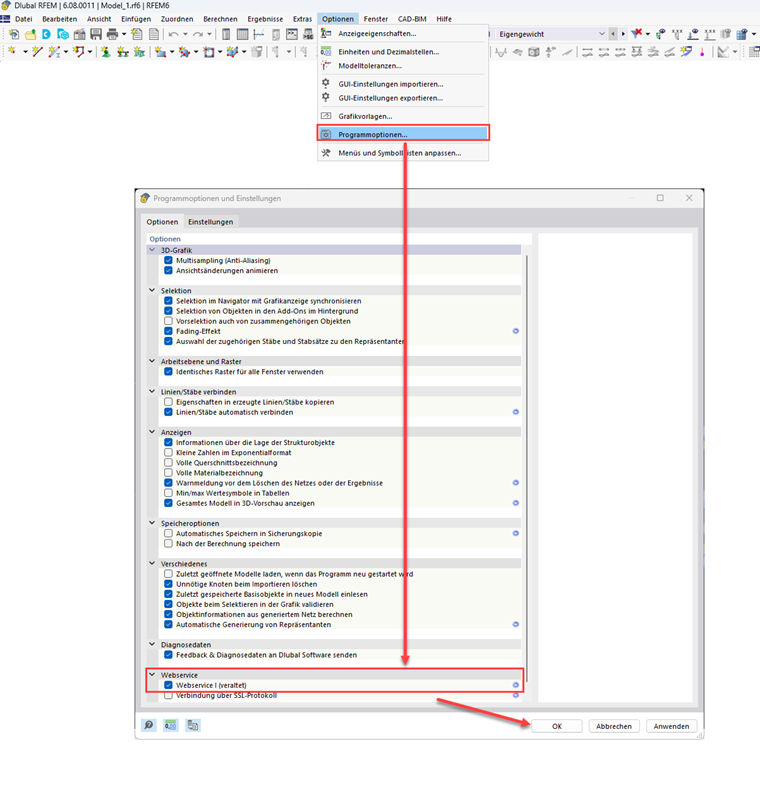

It is also necessary to ensure that the web service has been activated in RFEM. You can also find this setting in the RFEM menu "Options" under "Program Options".

Activating Web Service

Important

The Excel plugin will not be further developed in the future and will be replaced by a new solution based on the Dlubal API (SOAP). This allows the contents of the active table to be exported and imported.

Excel Import and Export

Author

Ms. Göbel provides technical support for Dlubal Software customers.

;
