Answer:
If the MAX/MIN information is no longer displayed, please check whether you have activated this in the Display navigator.
Displaying MAX/MIN Info

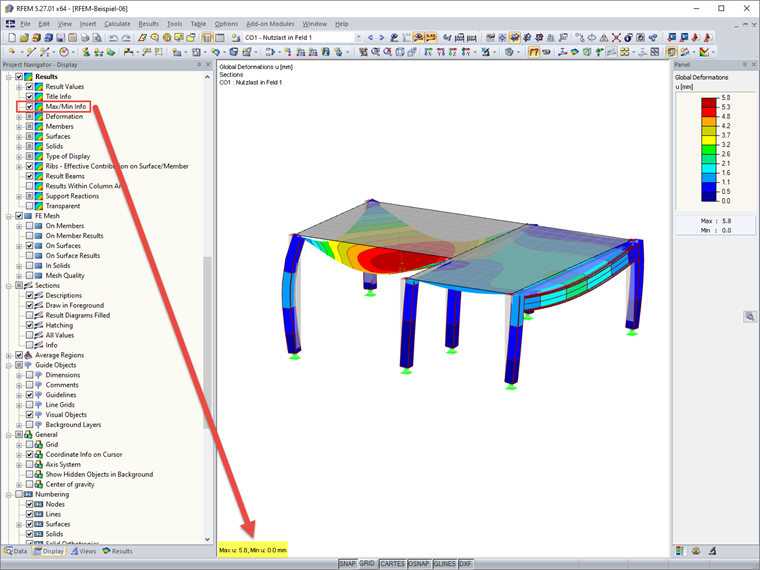

The output of extreme values is not displayed. Where can I activate the MAX/MIN info?
