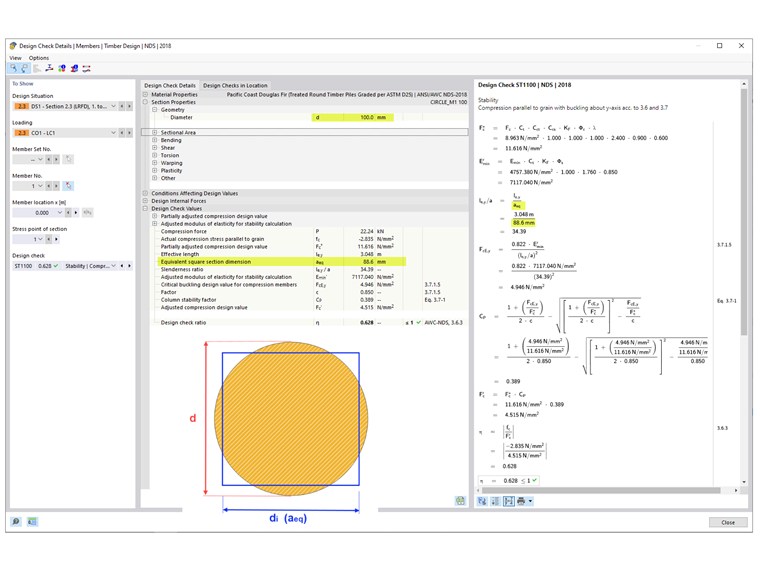

The formula to determine the initial section depth di (CSA) or the equivalent square section dimension aeq (NDS) used for the slenderness ratio calculation is as follows:
| di | Initial section depth |
| d | Diameter (section depth) |
| aeq | Equivalent square section dimension |
