Answer:

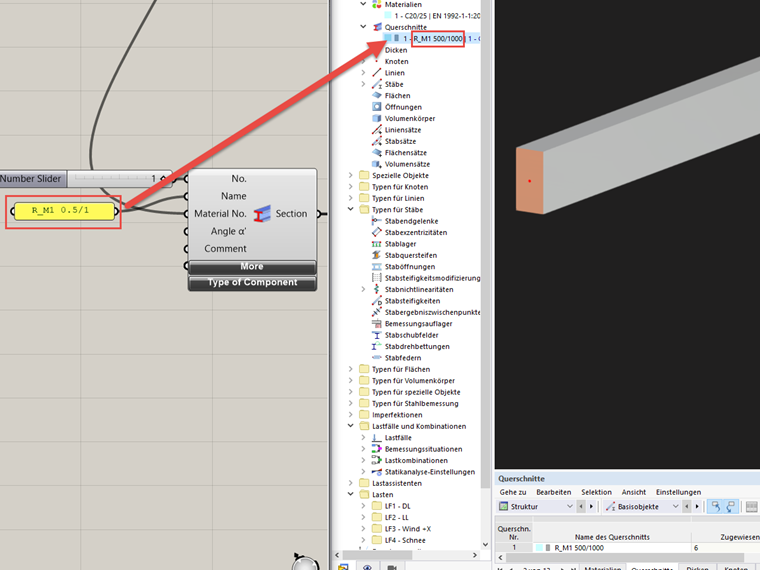

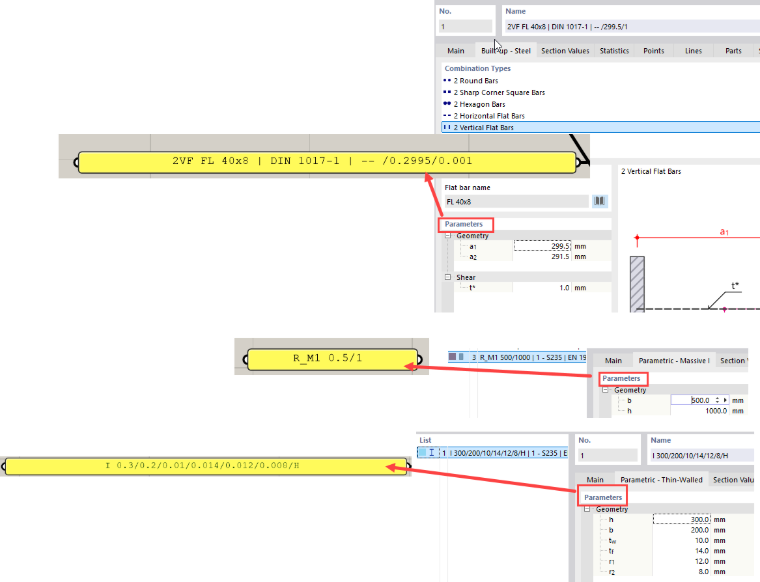

For parametric cross-sections, the definition is in meters, as Grasshopper refers to the SI units.
Exporting Parametric Cross-Sections from Grasshopper
I get an error when entering the name of a parametric section (for example, R_M1 500/1000) in Grasshopper.
