Graphic Templates for Printing Reinforcement Layout

How can I use graphic templates for multi printing of a reinforcement?


Answer:

Saving Graphic Template

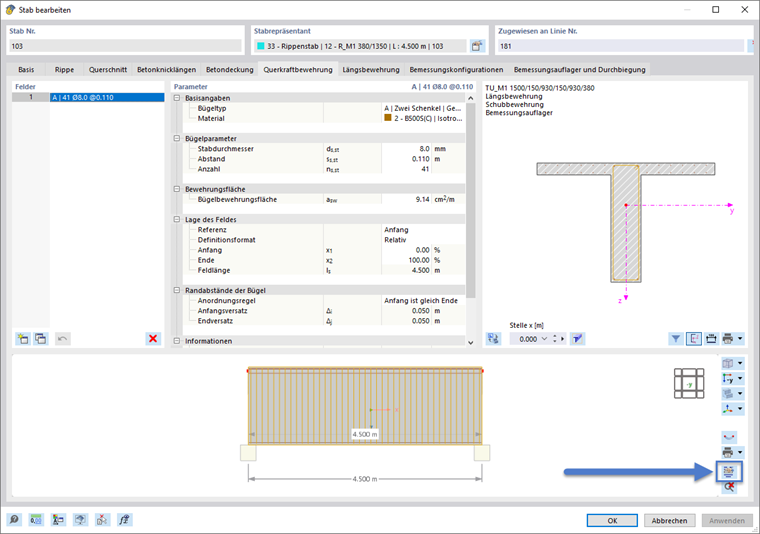

Once you have assigned the concrete material and activated the design properties in the member input dialog box, the display of the reinforcement layout for the selected member is available.

In the Display Reinforcement Layout window, you can proceed as follows.

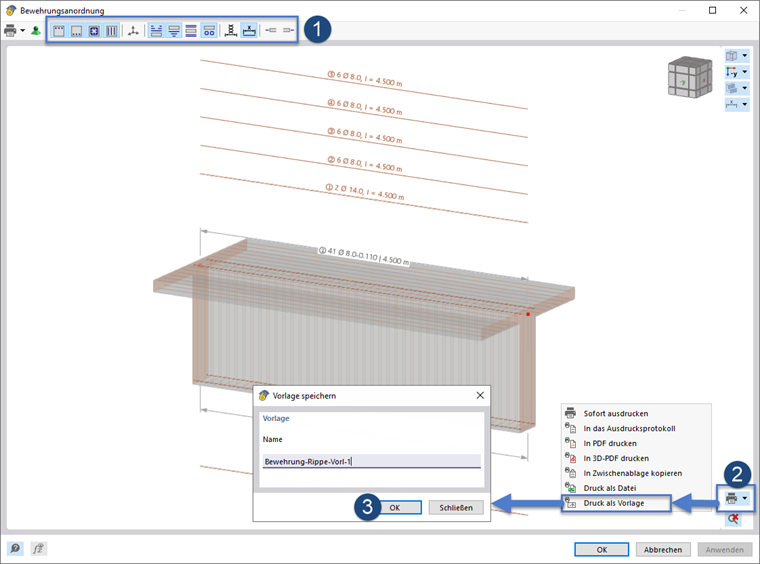

1. Use the options in the menu bar to customize the display according to your preferences.
2. This configuration can send "Directly to a printer" as a template.
3. When saving the template, it is stored globally and is also available for future models.

Multi Print of Reinforcement Layout for Selected Members

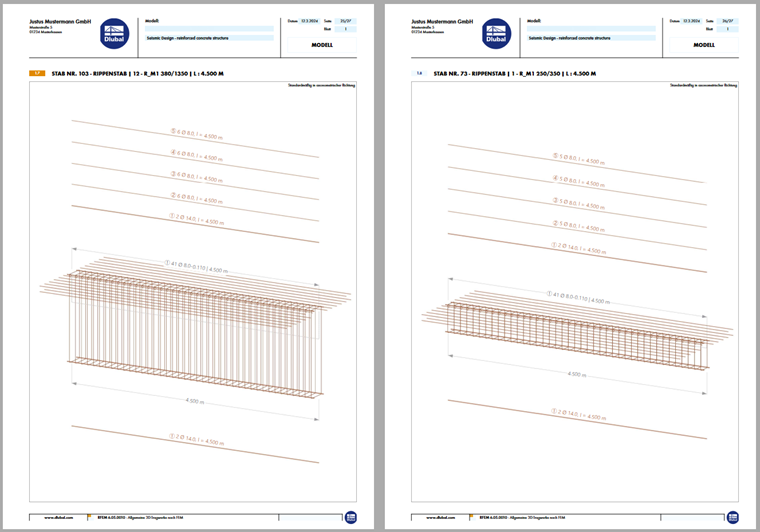

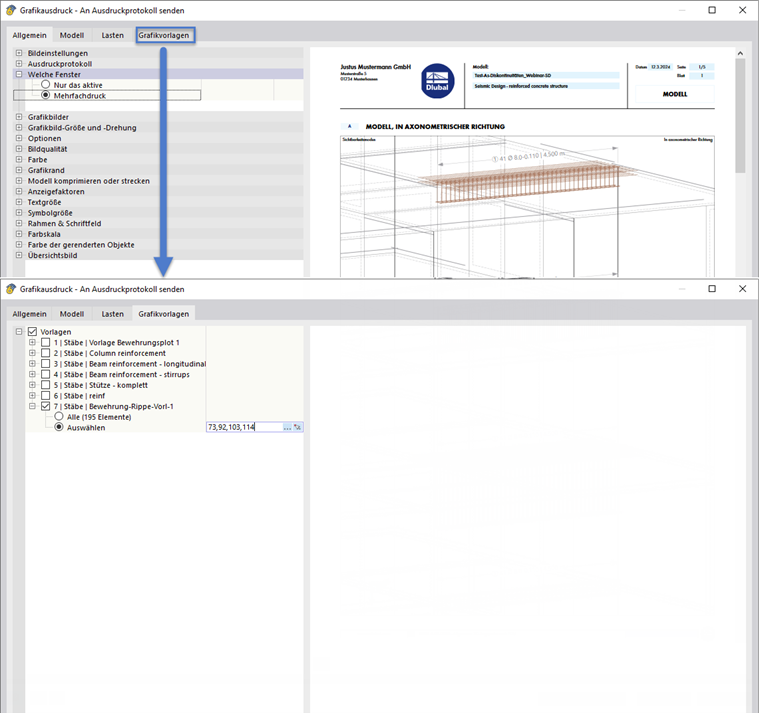

Use this graphic template to print the reinforcement of any members with a similarly formatted reinforcement layout in a multi print.
