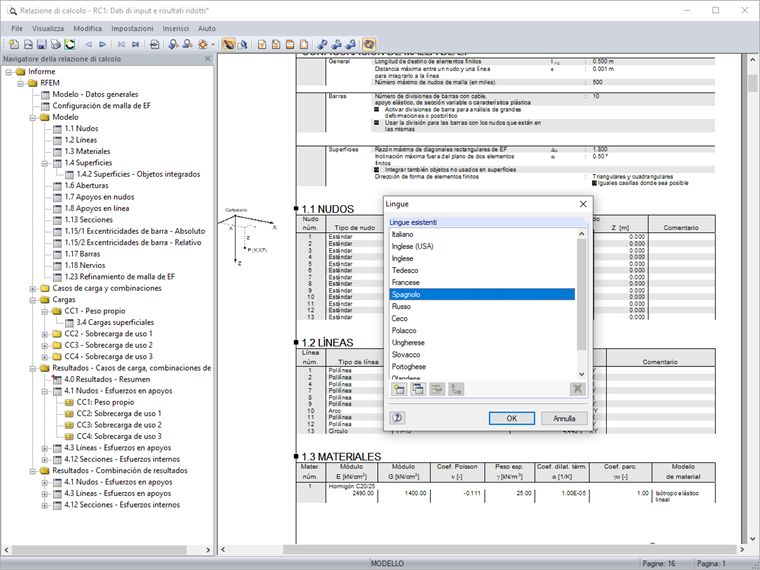

The language for the printout is independent of the language of the program interface. Thus, you can create a Spanish printout report in an Italian user interface, for example.

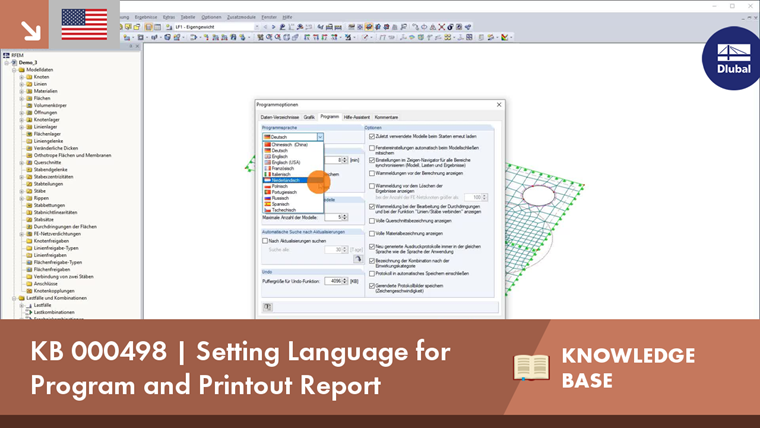

Setting Language for Program and Printout Report

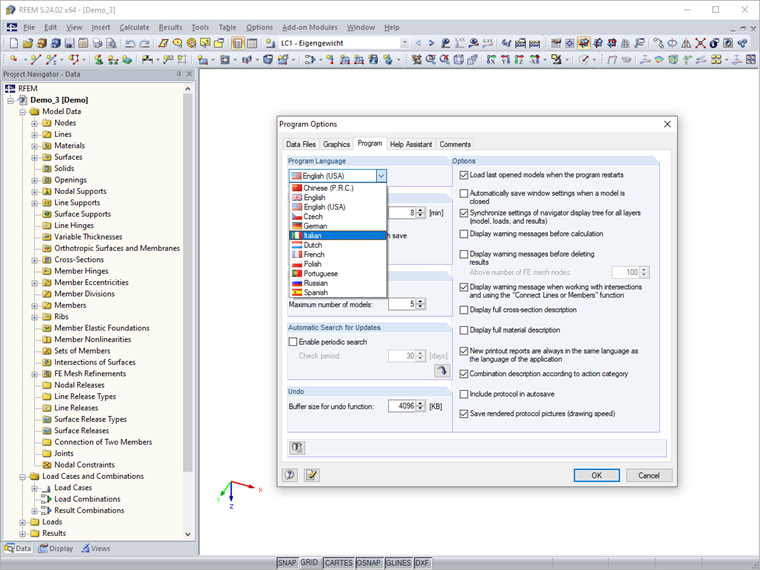

RFEM, RSTAB, and SHAPE-THIN are localized in eleven languages. All languages are available at no extra charge. The language of the program interface can be defined in the menu "Options" → "Program Options".
Author
Mr. Vogl creates and maintains the technical documentation.
