New Guide Object 'Line Grid'

Tips & Tricks

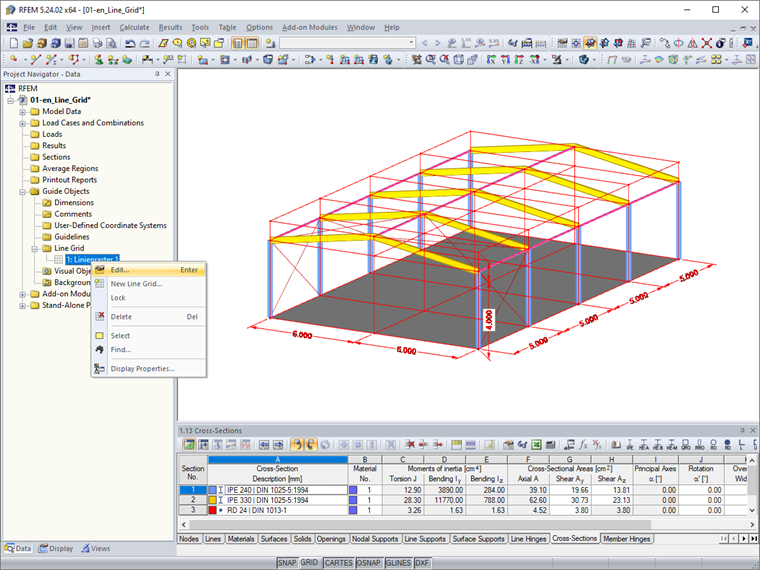

The new ‘Line Grid’ option is a function to quickly change the geometry of the model. This function can be found under ‘Guide Objects’ in the ‘Project Navigator – Data’. It allows you to create a line grid in the Cartesian coordinate system, which can optionally be dimensioned and provided with descriptions. Furthermore, you have the option to create spherical or cylindrical grids.
