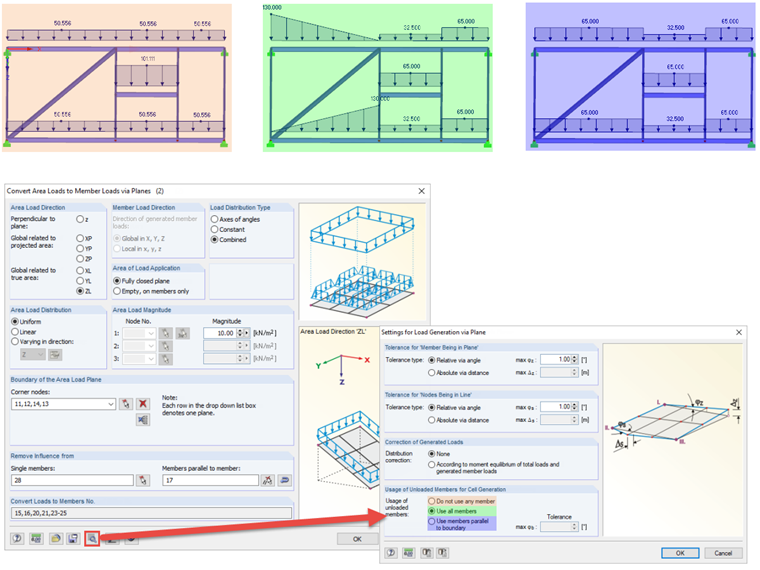

Therefore, special attention should be paid to including nonloaded members for the cell generation. To access the options, click the [Settings for Load Generation] button. The effects of the various options can be seen in the graphic above.

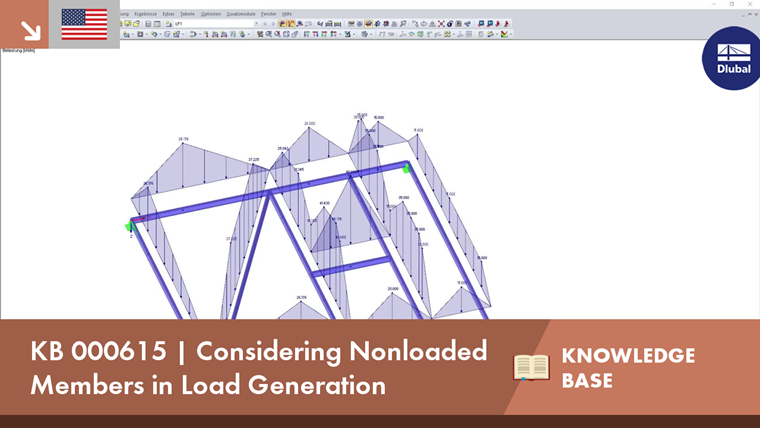

Considering Nonloaded Members in Load Generation
When generating member loads via plane, the program generates cells internally. These cells significantly influence the created member loads.
Author
Mr. Sühnel is responsible for the quality assurance of RSTAB; he also participates in product development and provides technical support for our customers.
