Selecting Objects

Tips & Tricks

If you draw a window with your mouse from left to right, all completely included objects are selected. If you draw the window from right to left, all parts that are even partially included are selected. In addition to the default rectangular selection window, you can also use a rhomboid, ellipse, or a circular ring (point to “Select” on the “Edit” menu).

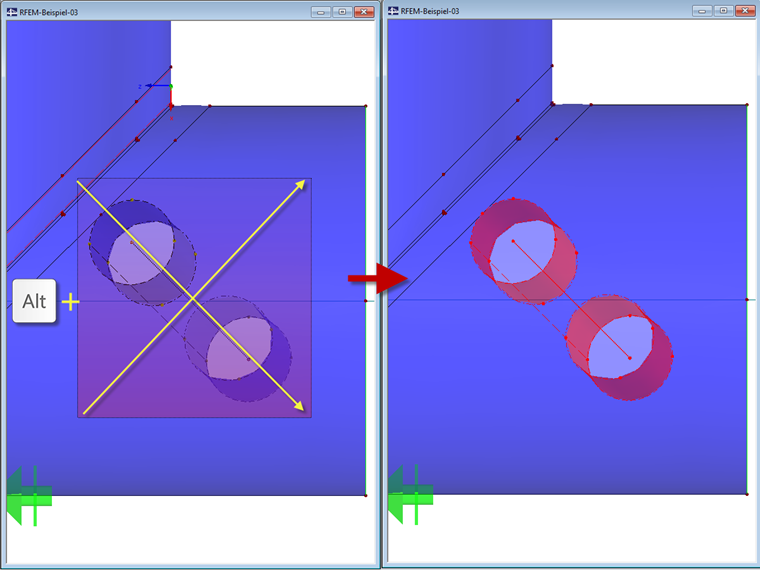

If you want to select a part of the rendered model, there is the risk that you inadvertently move an object by drag‑and‑drop instead of selecting it. To avoid this, press [Alt] during the selection.
