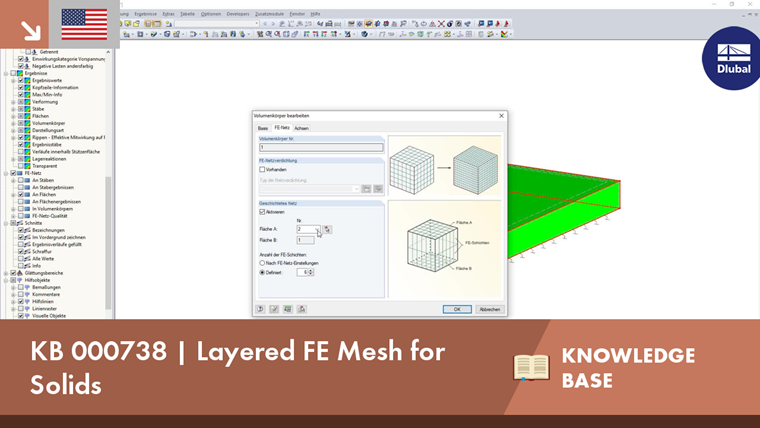

Layered FE Mesh for Solids

Tips & Tricks

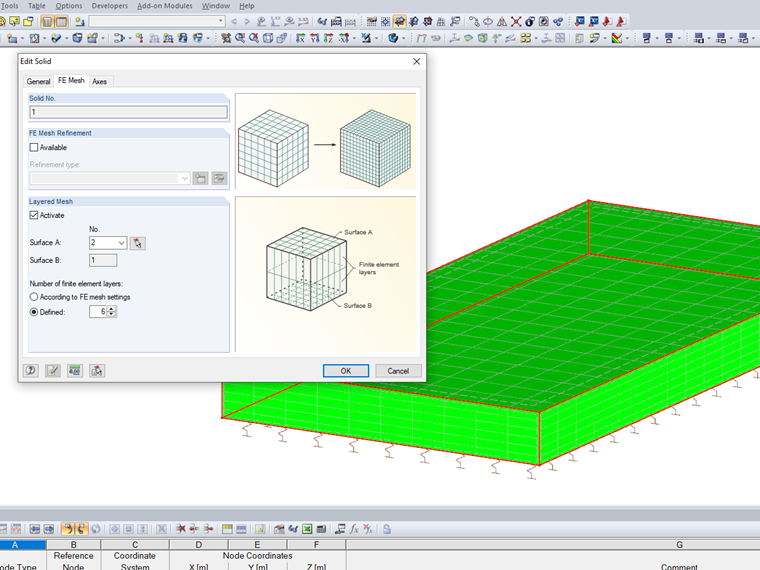

A new option of the FE Mesh settings has been implemented for solids. In addition to a holistic FE mesh refinement, you can now also arrange a layered FE mesh. For this option, you can perform a defined division of the solid with finite elements between two parallel surfaces. This option is particularly suited for very large solid geometries with a small height.
