Surface Coloring in Rendering in z-Direction

Tips & Tricks

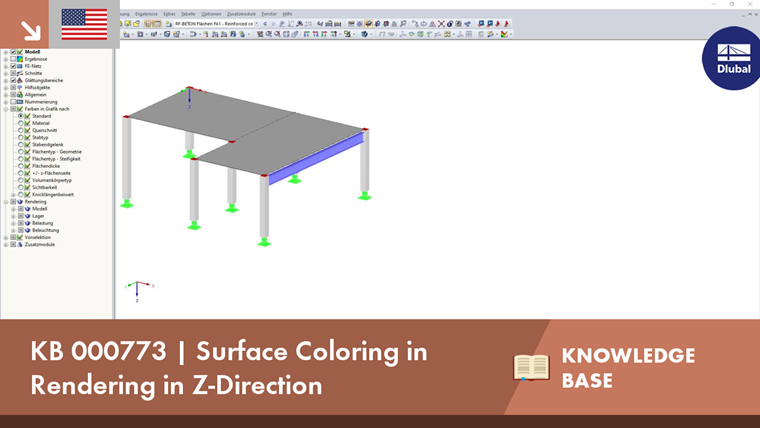

By using the indicated option in the ‘Display’ Navigator, you can color the surfaces in direction of the local z‑axis. By default, the side in the negative z‑direction is shown in red, the one in positive z‑direction in blue.

This option is useful for quickly checking the top and bottom side of surfaces, for example, for the design in RF‑CONCRETE Surfaces.
