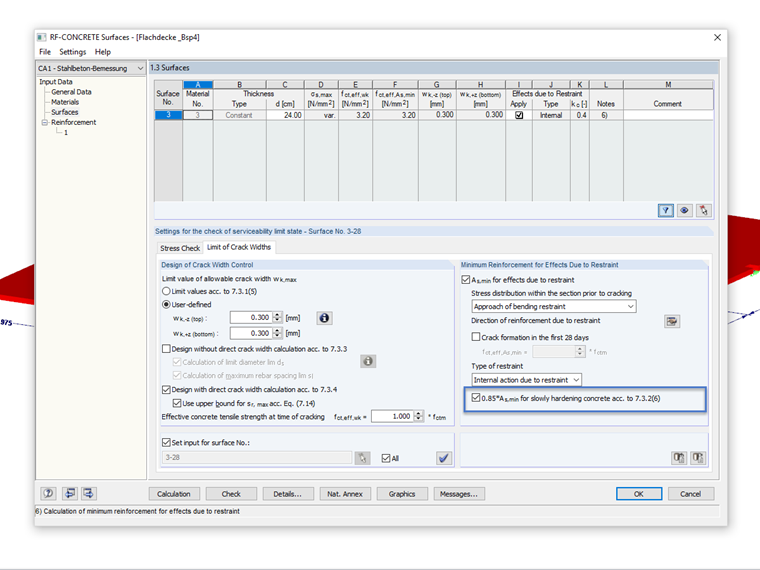

However, the reduction of the minimum reinforcement is regulated only in the national application documents for Germany and Austria. For other countries using Eurocode 2 for reinforced concrete design, this reinforcement reduction is not provided. Therefore, it is possible to apply the minimum reinforcement reduction in RF‑CONCRETE or CONCRETE only if you select one of the National Annexes for DIN EN 1992‑1‑1/NA: 2013‑04 (Germany) and ÖNORM B 1992‑1‑1:2011‑12 (Austria).
Mr. Meierhofer is the development leader of programs for concrete structures and is available for the customer support team in case of questions related to reinforced and prestressed concrete design.
