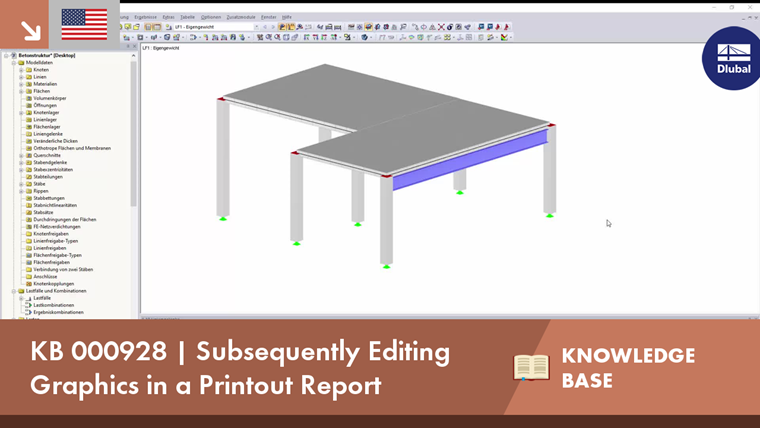

Subsequently Editing of Graphics in Printout Report
The printout report allows you to edit graphics subsequently.

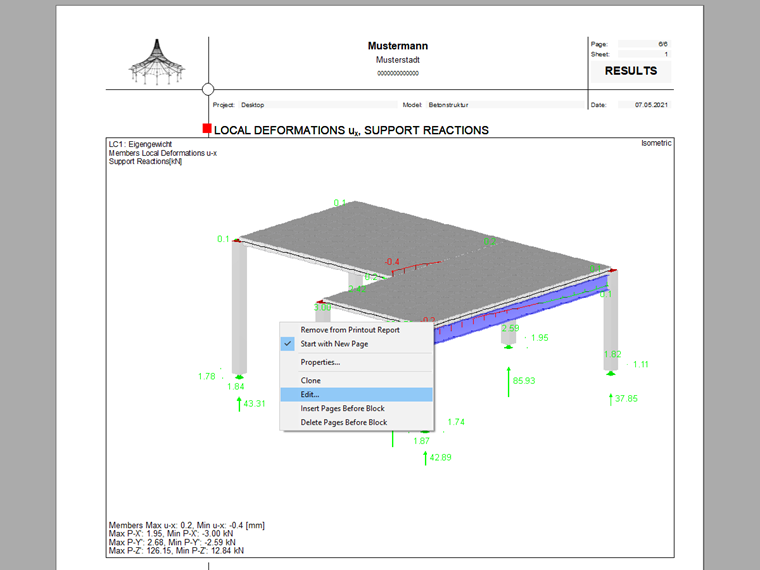

Right‑click on the graphic and click “Edit”. You are then redirected to the main program where you can make any changes you want.
