Structural Fire Design According to EN 1993-1-2 (Fire Curves)

Technical Article

Using RF-/STEEL EC3, you can apply nominal temperature-time curves in RFEM or RSTAB. The standard time-temperature curve (ETK), the external fire curve and the hydrocarbon fire curve are implemented. Moreover, the program provides the option to directly specify the final temperature of steel. This steel temperature can be calculated using the parametric temperature-time curve, as described in the Annex to EN 1992‑1‑2. The different fire exposures are explained in this article.


The fire is an action on the structure and thus it is regulated with all boundary conditions in EN 1991‑1‑2. This standard also includes all nominal temperature-time curves and simple natural fire models that can act on a structure.

Nominal Temperature-Time Curves

Over the years, many fire tests were done to evaluate the behaviour of structural components in the case of fire. During the tests, it was possible to determine the development of a fire over time as well as the temperature curve depending on the fire load and the components and materials.

These temperature-time curves are applicable only up to a certain point as they do not include any fire development phase nor cooling phase. Due to these tests and for the sake of a standard uniform assessment, a temperature-time law based on international agreements has been codified. EN 1991‑1‑2 provides three fire curve concepts which may be used for the simplified method according to EN 1993‑1‑2.

Figure 01 - Fire Curve Concepts According to EN 1991‑1‑2

Standard Time-Temperature Curve (ETK):
$\begin{array}{l}{\mathrm\Theta}_\mathrm g\;=\;20\;+\;345\;\cdot\;\log_{10}(8\;\cdot\;\mathrm t\;+\;1)\\{\mathrm\alpha}_\mathrm c\;=\;25\;\cdot\;\frac{\mathrm W}{\mathrm m\;\cdot\;\mathrm K}\end{array}$
External Fire Curve
$\begin{array}{l}{\mathrm\Theta}_\mathrm g\;=\;660\;\cdot\;(1\;-\;0.687\;\cdot\;\mathrm e^{0.32\cdot\mathrm t}\;-\;0.313\;\cdot\;\mathrm e^{-3.8\cdot\mathrm t})\;+\;20\\{\mathrm\alpha}_\mathrm c\;=\;25\;\cdot\;\frac{\mathrm W}{\mathrm m\;\cdot\;\mathrm K}\end{array}$
Hydrocarbon Fire Curve
$\begin{array}{l}{\mathrm\Theta}_\mathrm g\;=\;1,060\;\cdot\;(1\;-\;0.325\;\cdot\;\mathrm e^{-0.167\cdot\mathrm t}\;-\;0.675\;\cdot\;\mathrm e^{-2.5\cdot\mathrm t})\;+\;20\\{\mathrm\alpha}_\mathrm c\;=\;50\;\cdot\;\frac{\mathrm W}{\mathrm m\;\cdot\;\mathrm K}\end{array}$


Furthermore, there is a parametrised fire curve, but this is intended to use for the general design of fire protection according to EN 1993‑1‑2. In this case, the standard time-temperature curve is the most widely used fire curve, because most of the experimental studies on fire protection materials were performed according to this curve. In contrast, the external fire curve is not of high importance as the temperature of this curve rises up to 660 °C and therefore is not suitable for a longer time of fire exposure with the fire protection material. The hydrocarbon fire curve is similar to the tunnel fire curve as the temperature of this curve rises up to 1,350 °C and the increase is even steeper than that of any other fire curve.

Parametric Fire Exposure

If parametric fire exposure is used as a fire scenario, the load reduction effect of the structural component must be ensured. No failure of the component should occur during the fire phase, including the cooling phase, or within the required fire resistance time. Appendix A of EN 1991‑1‑2 provides a parametric temperature-time curve. This fire scenario is no longer permitted in Germany as there is the binding National Annex to EN 1991‑1‑2 that must be applied. This scenario was replaced by design fire, which allows for a complete description of a possible fire scenario, that is, from the development phase over the compartment fire phase to the decay phase.

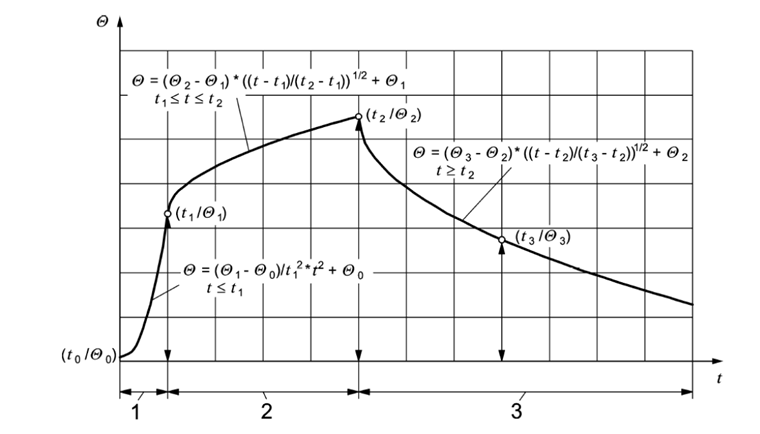

Figure 02 - Parametric Temperature-Time Curves According to EN 1991-1-2/NA

The curve sections are limited by distinctive points that result in the distribution of the rate of heat release. When determining temperature values, it is necessary to distinguish between ventilation controlled fires and fuel controlled fires. Moreover, the application of this natural fire model is limited. It applies to surface areas with an area of up to 400 m² and a height of up to 6 m. In the case of the ventilation controlled design fires, the characteristic value of the maximum rate of heat release can be calculated using the equations provided in Appendix A.


[1]   Eurocode 1: Actions on structures - Part 1‑2: General actions - Fire Actions on structures; EN 1991‑1‑2:2002 + AC: 2009
[2]   National Annex - Nationally determined parameters - Eurocode 1: Actions on structures - Part 1‑2: General actions - Actions on structures exposed to fire; DIN EN 1991‑1‑2/NA:2015‑09
[3]   Eurocode 3: Design of steel structures - Part 1‑1: General rules and rules for buildings; EN 1993‑1‑1:2005 + AC:2009
[4]  National Annex - Nationally determined parameters - Eurocode 3: Design of steel structures - Part 1‑1: General rules and rules for buildings; DIN EN 1993‑1‑1/NA:2015‑08
[5]  Eurocode 3: Design of steel structures - Part 1‑2: General rules - Structural fire design; EN 1993‑1‑2:2005 + AC:2009
[6]  National Annex - Nationally determined parameters - Eurocode 3: Design of steel structures - Part 1‑2: General rules - Structural fire design; DIN EN 1993‑1‑2/NA:2010‑12
