RF-PUNCH Pro | Design

Product Feature

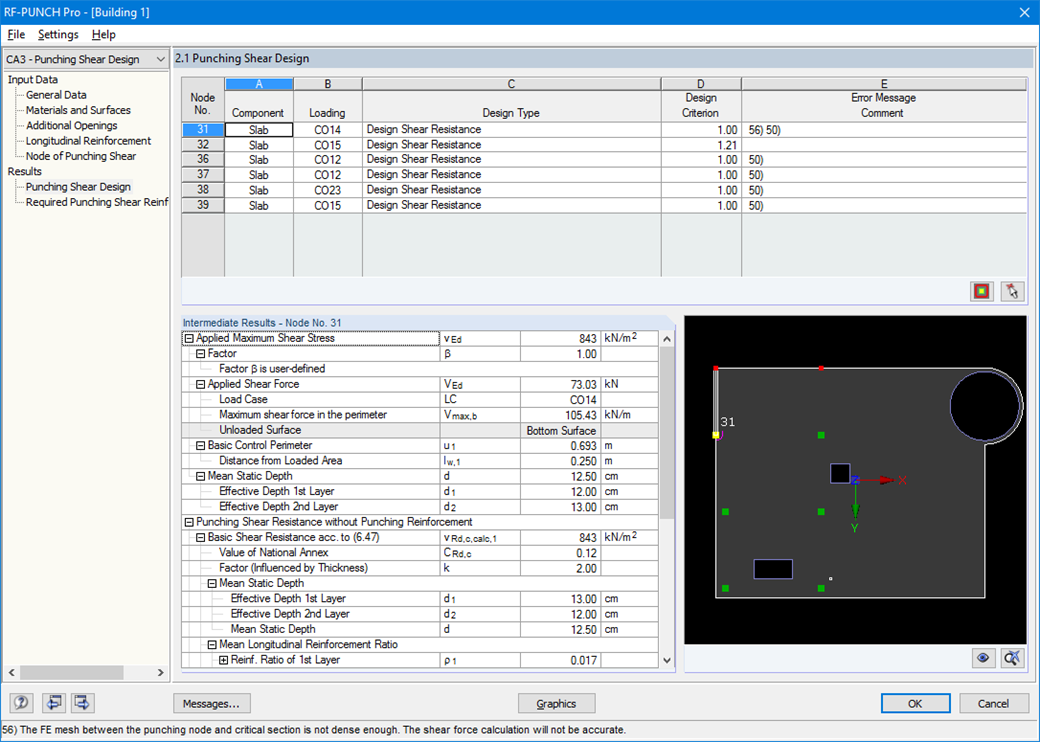

RF-PUNCH Pro determines the punching load on the basis of a single load (from column / loading / nodal support) and of the smoothed and unsmoothed shear force distribution along the control perimeter. However, it is also possible to enter user‑defined specifications.

Since the module is fully integrated in RFEM, all nodes of punching shear on a reference surface are known. Therefore, you can perform the interference check of determined perimeters with the perimeters of adjacent columns.

Contact us

Contact to Dlubal

Do you have any questions or need advice?
Contact us or find various suggested solutions and useful tips on our FAQ page.

+49 9673 9203 0

info@dlubal.com

RFEM Concrete Structures
RF-PUNCH Pro 5.xx

Add-on Module

Punching shear design of foundations and slabs with nodal and line supports

Price of First License
760.00 USD
