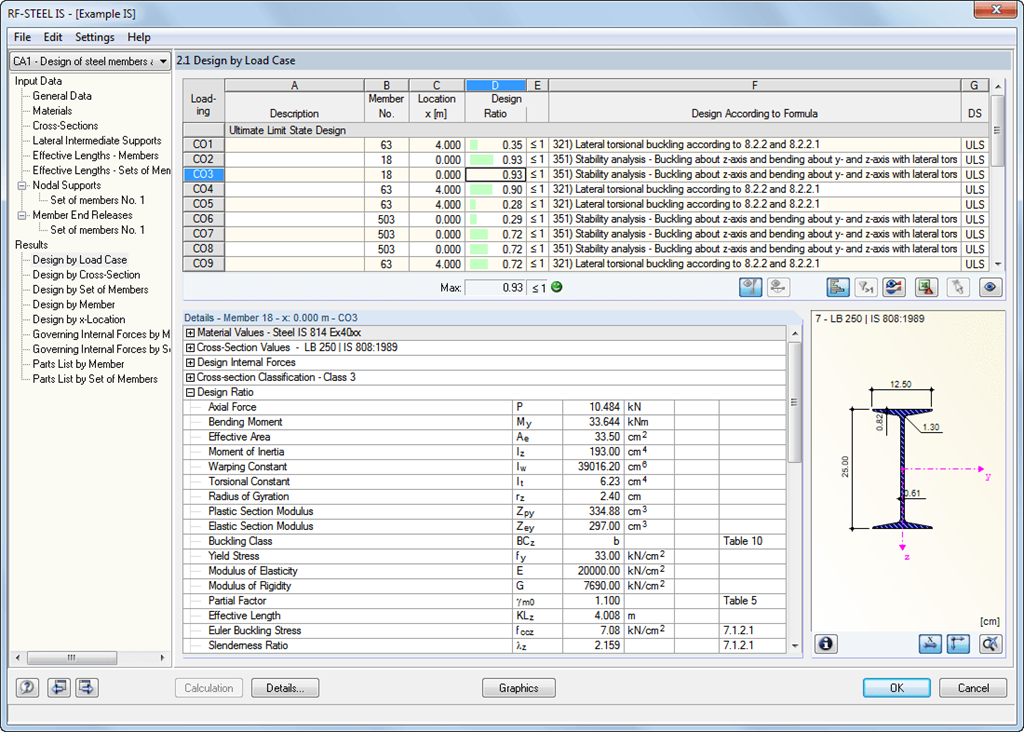

The first result window shows the maximum design ratios including the corresponding design of each designed load case, load combination, or result combination.
The other result windows list all detailed results sorted by specific subject in extendable tree menus. All intermediate results along a member can be displayed at any location. In this way, you can easily retrace how the module has performed the individual designs.
Complete module data is part of the RFEM/RSTAB printout report. You can select the report contents and extent specifically for the individual designs.
In RF-/STEEL EC3, the Window 1.4 Lateral Intermediate Supports offers you the option to define lateral intermediate supports at individual members. These supports are created from connected purlins and horizontal beams, for example, and increase the resistance against lateral-torsional buckling. Lateral intermediate supports can be entered either with a relative or an absolute distance.
The model is constructed by means of parameters for geometry and loads and regenerates when the parameters are changed.
RF-/STEEL Cold-Formed Sections Module Extension | Design of cold-formed sections according to EN 1993-1-3
3D model of the butadiene storage sphere in RFEM (left) and the mode shape from RF-DYNAM Pro (right)
3D model of the steel structure with the results of structural design according to GB 50017-2003 in RSTAB (© Novum Structures LLC)
It is necessary to enter material, load and combination data in RFEM/RSTAB in compliance with the design concept specified by IS 800. The RFEM/RSTAB material library already contains relevant materials for IS 800.
RFEM/RSTAB automatically creates the corresponding load combinations according to IS 800. However, you can also create all combinations manually in RFEM/RSTAB. The RF-/STEEL IS add-on module requires members and sets of members as well as load cases, load combinations, and result combinations to be designed.
In the subsequent input windows, you can adjust preset definitions of lateral intermediate supports and effective lengths. In the case of continuous members, it is possible to define individual support conditions and eccentricities of each intermediate node of single members. A special FEA tool determines critical loads and moments required for the stability analysis.
