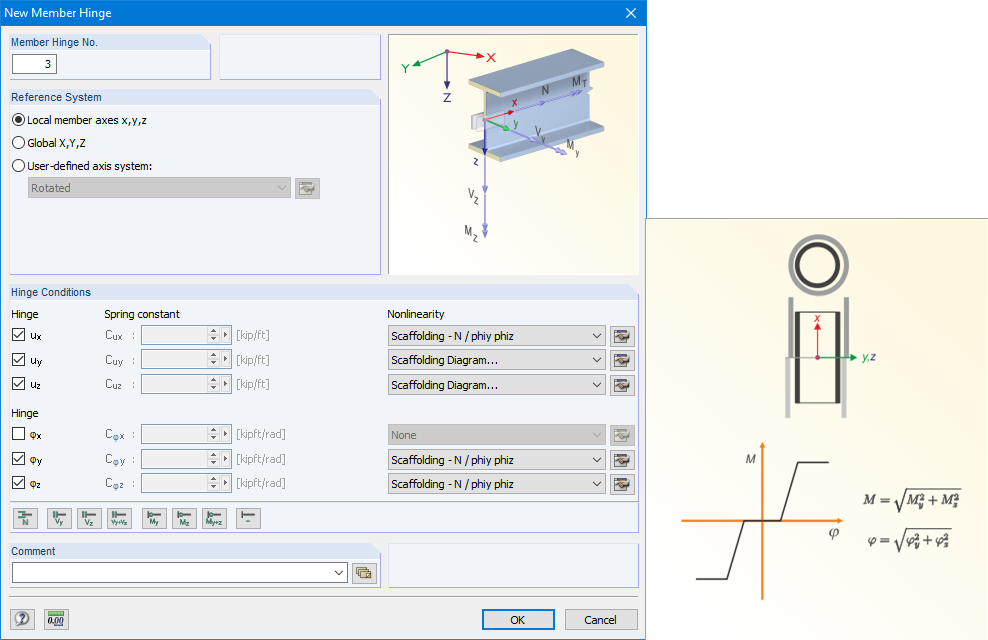

Member Hinge Nonlinearity "Scaffolding Diagram"

Product Feature

The member hinge nonlinearities "Scaffolding - N phiy phiz" and "Scaffolding Diagram" enable the mechanical simulation of a tube joint with an inner stub between two member elements.

The equivalent model transfers the bending moment via the overpressed outer pipe and after positive locking additionally via the inner stub, depending on the compression state at the member end.
