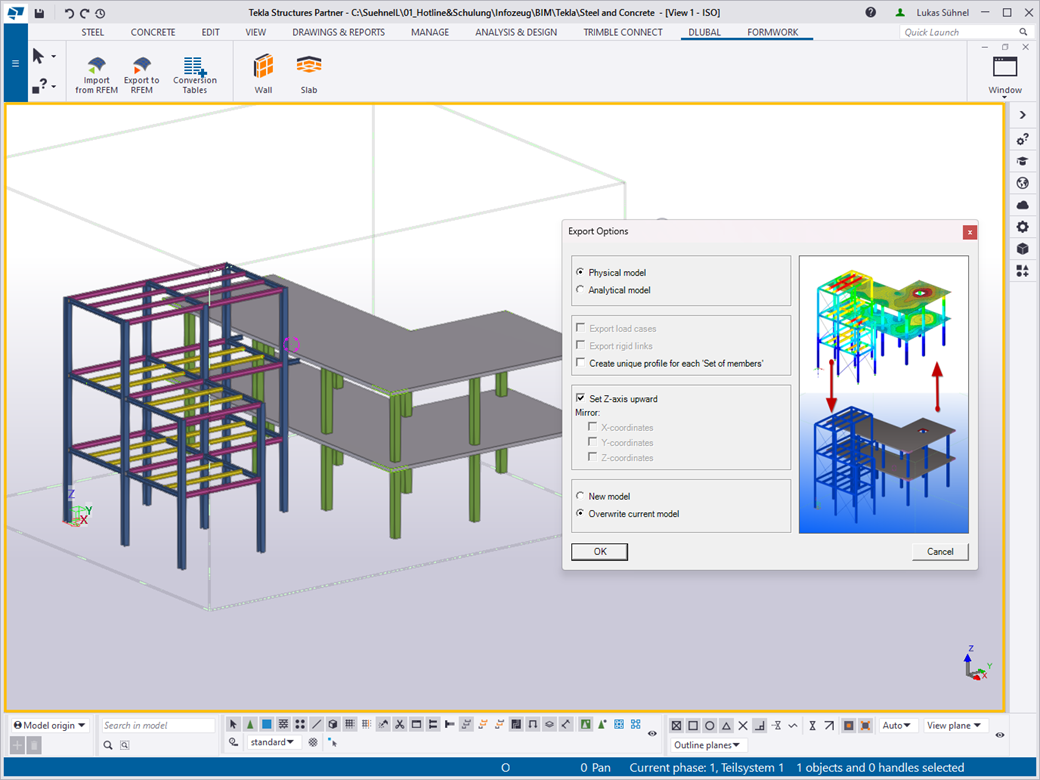

When designing a model in Tekla Structures, a structural analysis model is created automatically. You can export this model to RFEM at the push of a button. Information about structural supports and hinges that may be included in the Tekla model is also transferred. After the export, the structural system is calculated in the familiar RFEM environment. The structural analysis model does not differ from a model created manually in RFEM.
