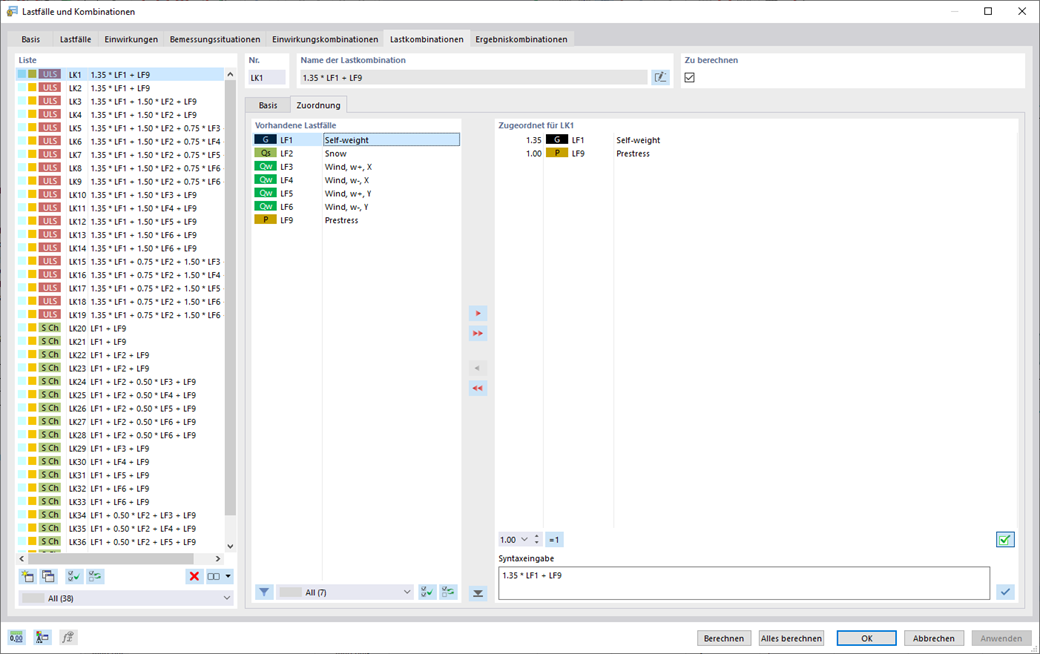

In the "Load Cases & Combinations" dialog box, you have an option to automatically generate load and result combinations as soon as you have selected the corresponding combination expressions. For example, you can also copy or add load cases in a clearly arranged window.
Furthermore, you can manage the load cases and combinations in the tables.
Product Feature
Product Feature
Product Feature
With Dlubal, you can safely and easily design structures all over the world. Select from a large number of standards in the Base Data. You can also decide whether to create the combinations automatically.
The following standards are available:
EN 1990
EN 1990 | Timber
EN 1990 | Road Bridges
EN 1990 | Cranes
EN 1990 | Geotechnical Engineering
EN 1990 | Base + Timber
EN 15512
ASCE 7
ASCE 7 | Timber
ACI 318
IBC
CAN/CSA
NBC
NBC | Timber
NBR 8681
IS 800
SIA 260
SIA 260 | Timber
BS 5950
GB 50009
GB 50068
GB 50011
CTE DB-SE
SANS 10160-1
NTC
NTC | Timber
AS/NZS 1170.0
SP 20.13330:2016
TSC | Steel For the European standards (EC), the following National Annexes are available:
DIN | 2012-08 (Germany)
CEN | 2010-04 (European Union)
BDS | 2013-03 (Bulgaria)
BS | 2009-06 (United Kingdom)
CSN | 2015-05 (Czech Republic)
CYS | 2010-06 (Cyprus)
DK | 2013-09 (Denmark)
ELOT | 2009-01 (Greece)
EVS-EN 1990:2002+NA:2002 (Estonia)
IS | 2010-04 (Ireland)
LST | 2012-01 (Lithuania)
LU | 2020-03 (Luxembourg)
LVS | 2015-01 (Latvia)
MS | 2010-02 (Malaysia)
NBN | 2015-05 (Belgium)
NEN | 2011-12 (Netherlands)
NF | 2011-12 (France)
NP | 2009-12 (Portugal)
NS | 2016-05 (Norway)
ÖNORM | 2013-03 (Austria)
PN | 2010-09 (Poland)
SFS | 2010-09 (Finland)
SIST | 2010-08 (Slovenia)
SR | 2006-10 (Romania)
SS | 2008-06 (Singapore)
SS | 2019-01 (Sweden)
STN | 2010-01 (Slovakia)
TKP | 2011-11 (Belarus)
UNE | 2010-07 (Spain)
UNI | 2010-10 (Italy)
In the "Load Cases & Combinations" dialog box, you have an option to automatically generate load and result combinations as soon as you have selected the corresponding combination expressions. For example, you can also copy or add load cases in a clearly arranged window.
Furthermore, you can manage the load cases and combinations in the tables.
Use the "Independent mesh preferred" option in the FE mesh settings to create an independent FE mesh for the integrated objects. This allows you to generate a significantly more detailed and precise FE mesh for individual objects that are integrated into one another.
In the "Edit Section" dialog box, you can display the buckling shapes of the Finite Strip Method (FSM) as a 3D graphic.
