Before you can define any parameters that are relevant to dynamic analyses, you have to activate the corresponding add-ons. They are globally controlled by the 'Base Data' settings of the model. To open that dialog box, click Base Data on the File menu or use the
button on the toolbar.
Activating the Dynamic Analysis

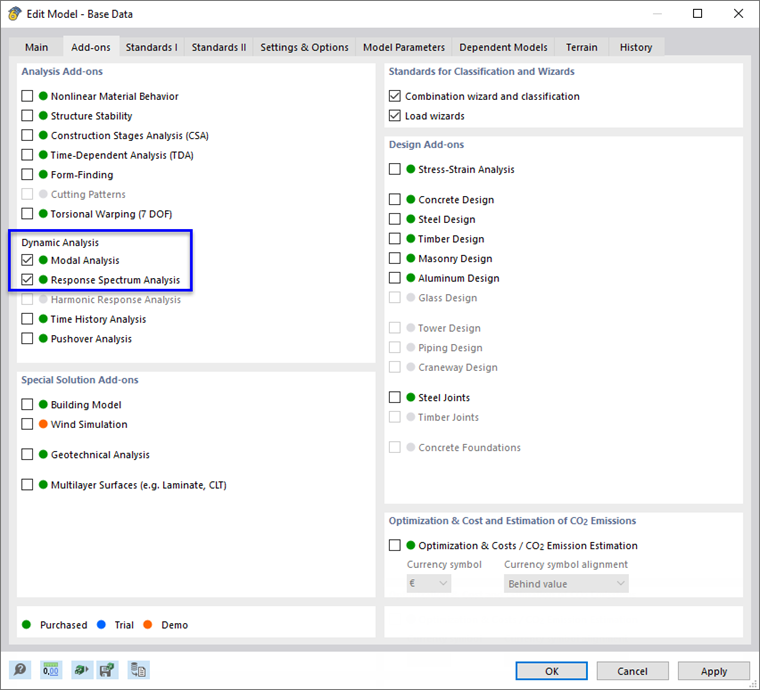

Select the Add-ons tab of the 'Edit Model - Base Data' dialog box.
In the 'Analysis Add-ons' area, select the Modal Analysis and the Response Spectrum Analysis options. By doing so, the determination of the natural frequencies and mode shapes as well as the seismic analysis is enabled.
Selecting the Standard

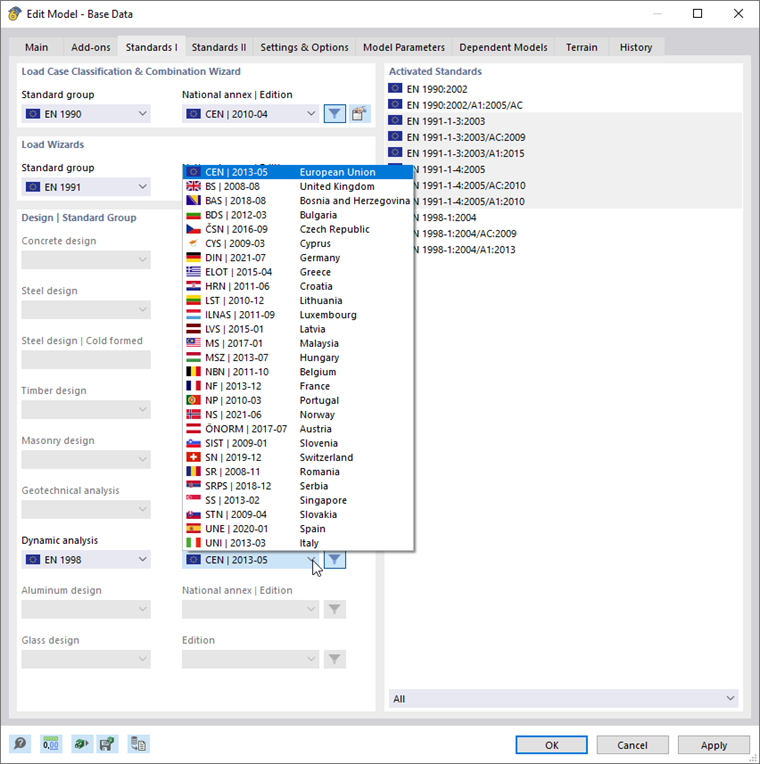

Go to Standards I tab to check the standard that is preset for the dynamic analysis.
Make sure that EN 1998 is set as standard group for the 'Dynamic analysis'. The 'National Annex' list provides a selection of country settings. Even though the model is located in Italy, the universal CEN recommendations are to be applied in this tutorial.
Checking the Standard Gravity

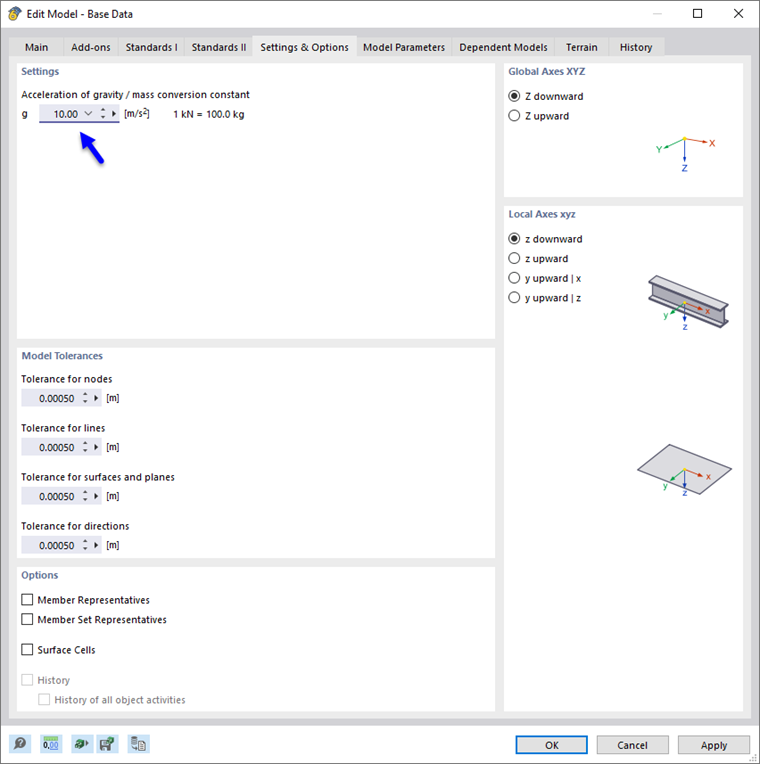

Select Settings & Options tab next to check the settings of the standard gravity.
The 'Acceleration of gravity / mass conversion constant' g is preset as 10.00 m/s2. It is possible to adjust the value so that the loads are converted to masses with a different factor. Do not change the default setting, though.
Click OK to close the 'Base Data' dialog box. If the program asks you whether all results are to be deleted because of the modified parameters, click Yes.
Navigator

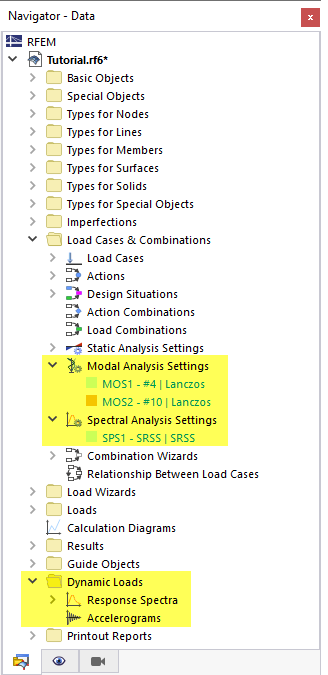

In the navigator, a new folder has been added: 'Dynamic Loads'. It manages the response spectra and accelerograms used for the response spectrum analysis. Furthermore, there are new items in the 'Load Cases & Combinations' folder: 'Modal Analysis Settings' and 'Spectral Analysis Settings'. They control the parameters of the modal analysis and of the response spectrum analysis.
