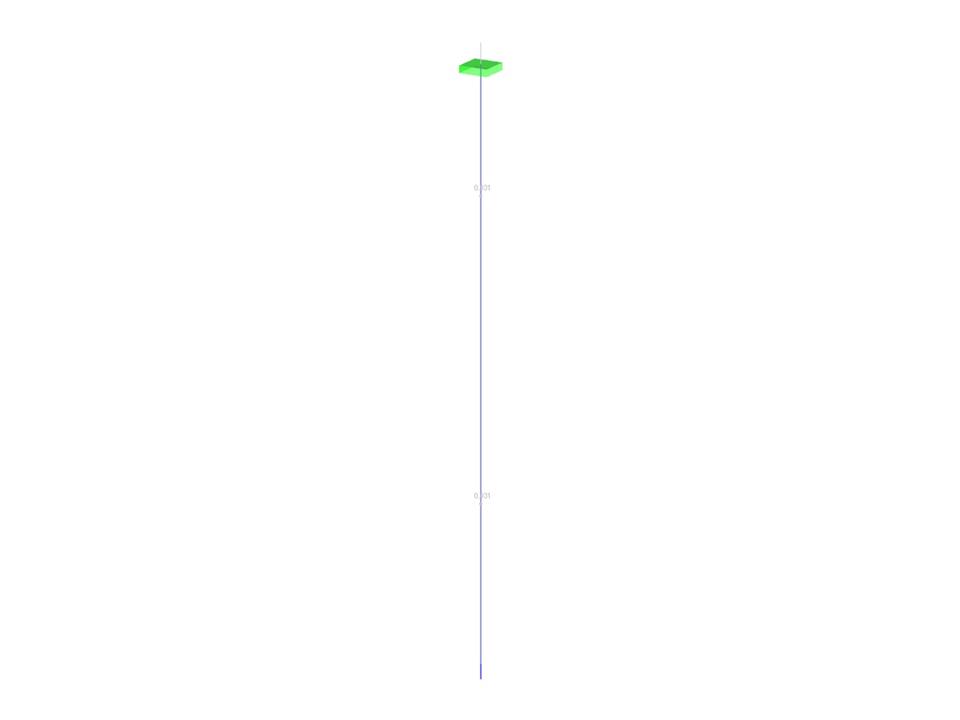

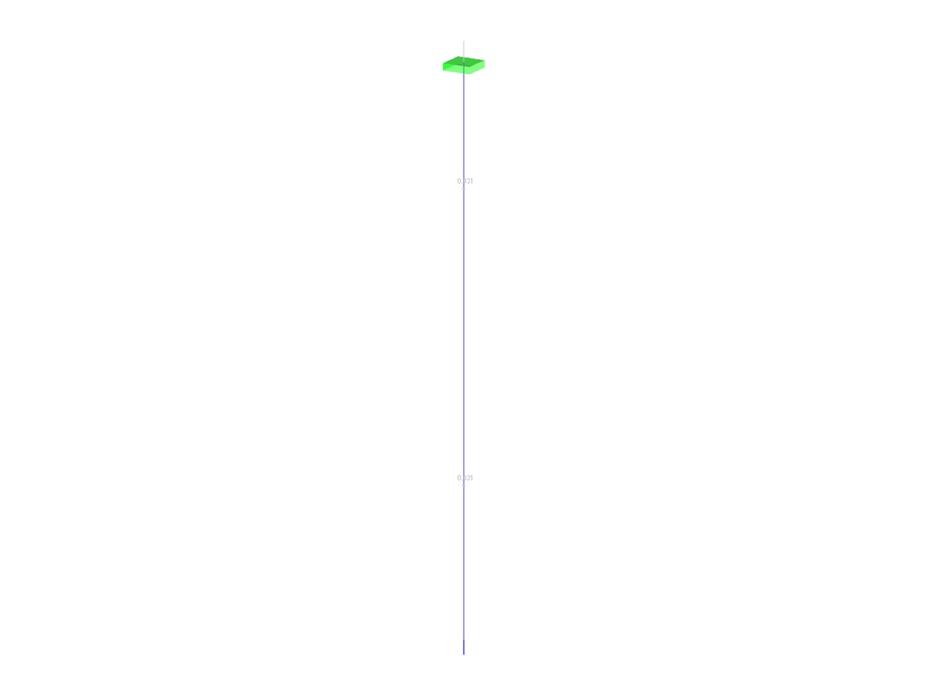

A rod with a square cross-section is fixed on the top end. The rod is loaded by its self-weight. For comparison, the example is also modeled with the concentrated force load which value is equal to the gravity. This verification example aims to show the difference between these types of loading although the total loading force is equal.
Verification Example 000062 | 2
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Load Cases | 1 |
| Total Weight | 0.031 tons |
| Dimensions | 1.64 x 1.64 x 33.63 feet |
| Program Version | 5.06.11 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
