Verification Example 000083 | 1
  • Description
  • Reviews (0)

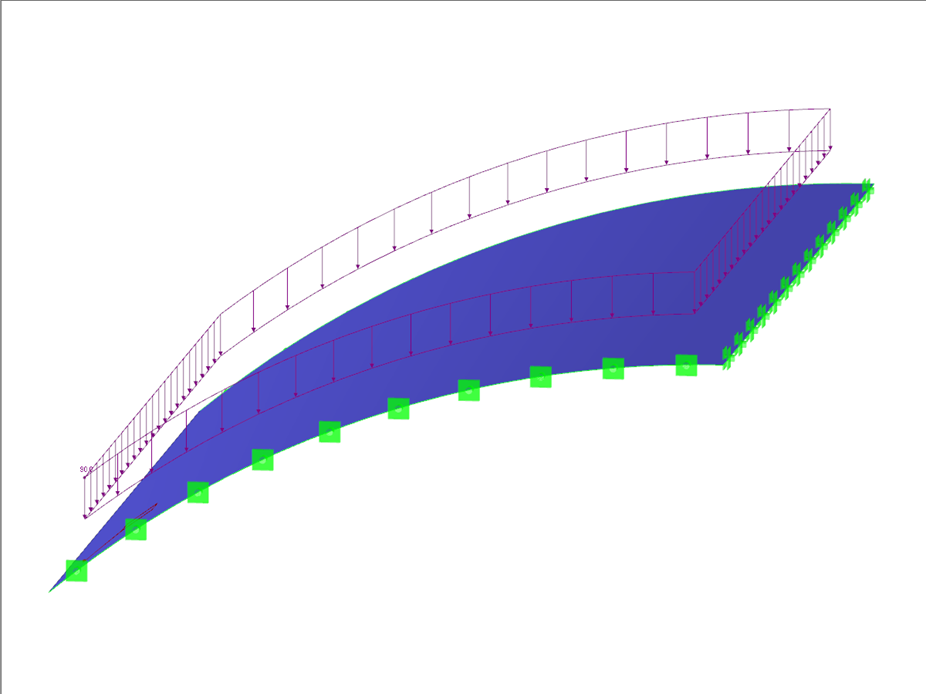

A shell roof structure under pressure load is modelled, where the straight edges are free, while at the curved edges the y- and z‑translations are constrained. Neglecting self‑weight, compute the maximal (absolute) vertical deflection, and compare the results with COMSOL Multiphysics 4.3.

Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Verification Example 000083 | 1

Number of Nodes 6
Number of Lines 4
Number of Surfaces 1
Number of Load Cases 1
Total Weight 0.109 tons
Dimensions (Metric) 31.164 x 22.233 x 12.012 m
Dimensions (Imperial) 102.24 x 72.94 x 39.41 feet
Program Version 5.12.00

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
