A channel system integrated into the welded I-beams and downpipes integrated into the columns allow for unobtrusive rainwater drainage and improved esthetic appeal. The roofing spans the school sports grounds of the Foyer de Charité de Châteauneuf-de-Galaure, in the Drôme department.
A channel system integrated into the welded I-beams and downpipes integrated into the columns allow for unobtrusive rainwater drainage and improved aesthetic appeal.
AC Structures, Rennes, France
www.ac-structures.com

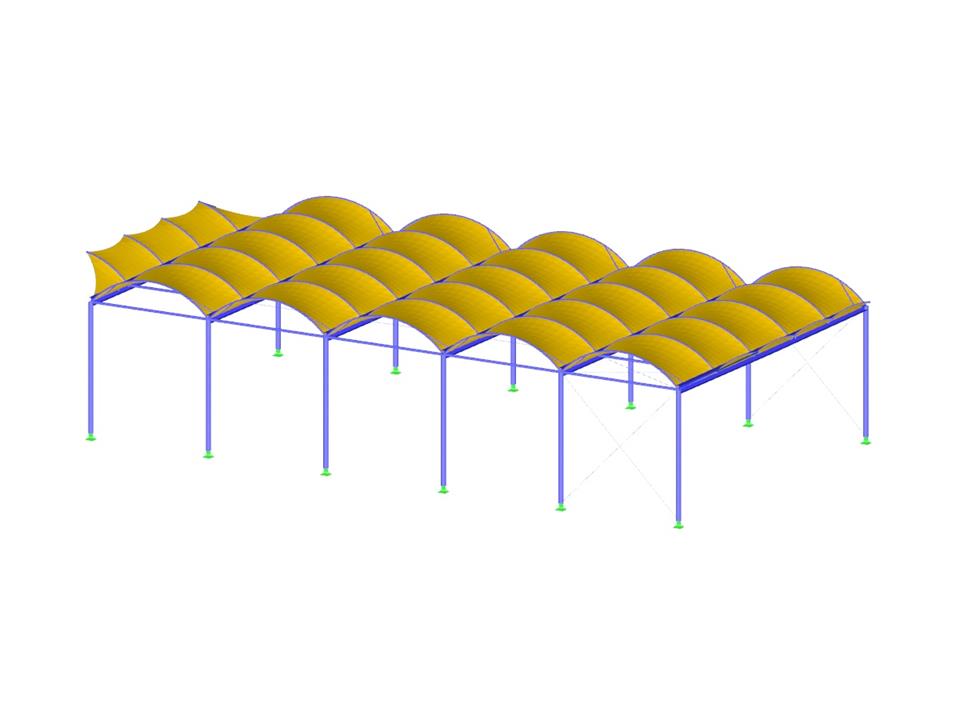

RFEM Roof Model (© AC Structures)
A channel system integrated into the welded I-beams and downpipes integrated into the columns allow for unobtrusive rainwater drainage and improved aesthetic appeal.
AC Structures, Rennes, France
www.ac-structures.com
RFEM Roof Model (© AC Structures)
Membrane Roof Structure with Steel Frame
No Download Possible
Customer Project / View Only
| Number of Nodes | 281 |
| Number of Lines | 329 |
| Number of Members | 249 |
| Number of Surfaces | 60 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 50 |
| Number of Result Combinations | 5 |
| Total Weight | 26.860 tons |
| Dimensions (Metric) | 41.160 x 20.371 x 9.325 m |
| Dimensions (Imperial) | 135.04 x 66.83 x 30.59 feet |
| Program Version | 5.22.03 |
