You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.

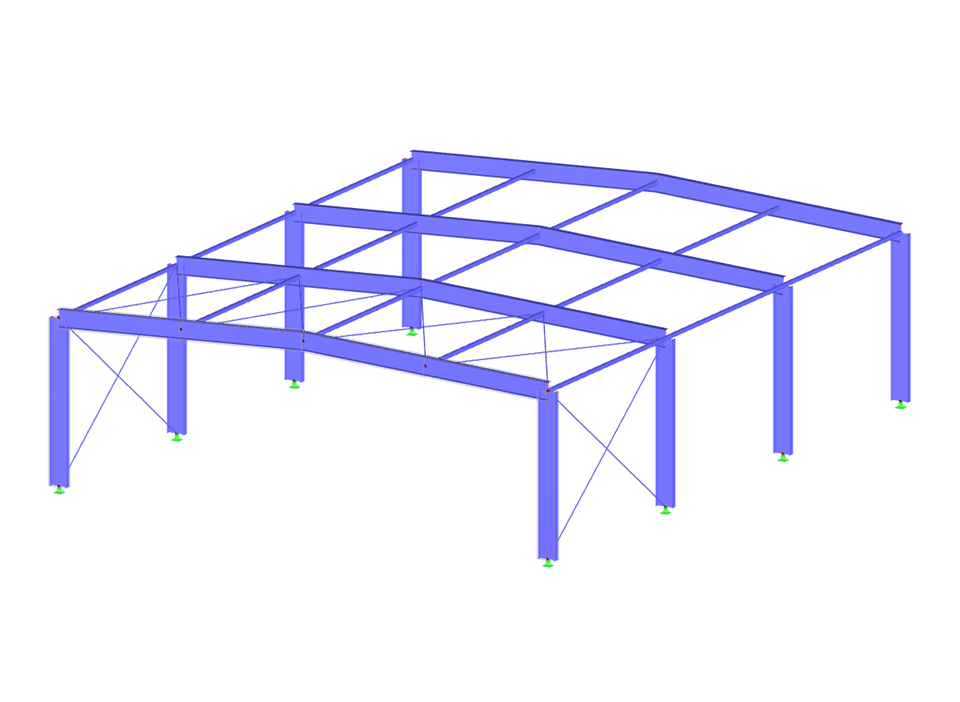

Frame Structure
Model to Download
Description
Download the model of a frame structure here and open it with the finite element analysis software RFEM.
This model is used in the free webinar 'Stability Analysis in Steel Structures with RFEM and RSTAB' presented in German version on November 24, 2020 (December 1, 2020, in English).
Model Used in
Keywords
Frame structure Equivalent member method General method EC 3 Eurocode 3
