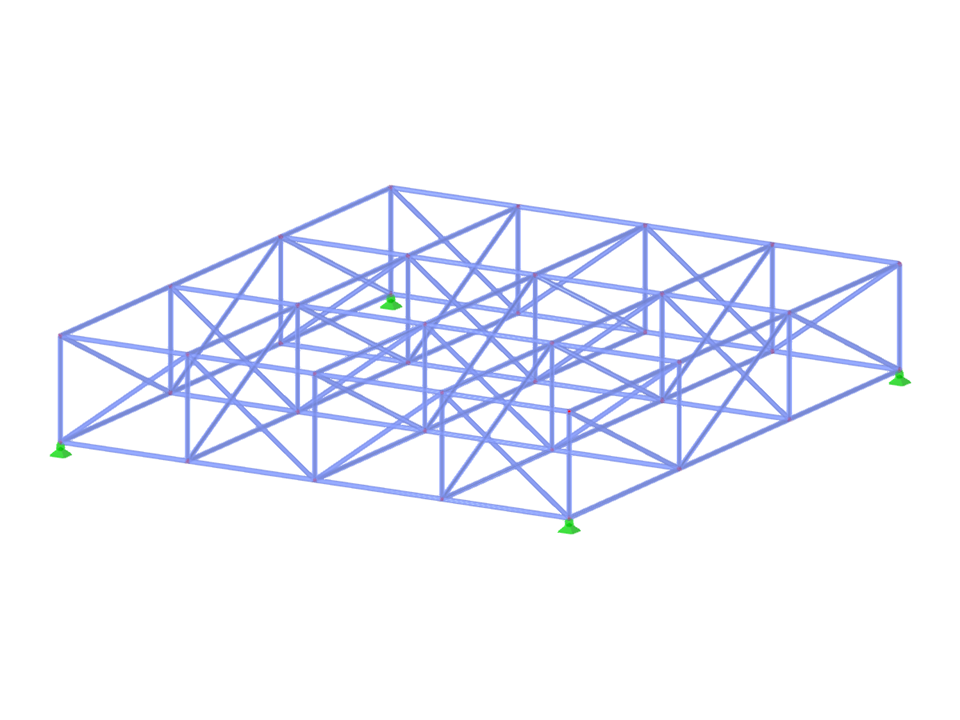

Space Truss
Flat space truss system composed of rectangular prisms.
System with single trussing of vertical prism faces
- Lateral trussing (bracing) not included
SPT001 | Space Truss
| Block parameters editable dynamically | |
| Number of Nodes | 40 |
| Number of Lines | 113 |
| Number of Members | 113 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.522 tons |
| Dimensions (Metric) | 8,000 x 1,500 x 9,000 m |
| Dimensions (Imperial) | 26.25 x 4.92 x 29.53 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
