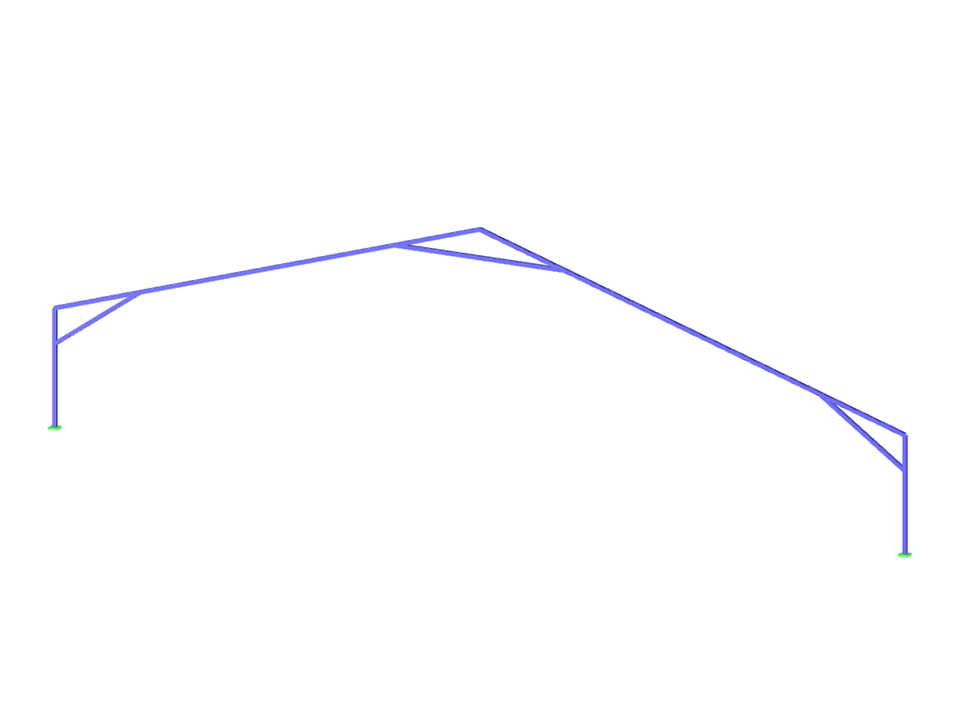

Parameterization of the geometry of a frame with reinforcement at beam-column node and ridge.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Frame with Stiffeners
| Block parameters editable dynamically | |
| Number of Nodes | 11 |
| Number of Lines | 7 |
| Number of Members | 7 |
| Total Weight | 1.242 tons |
| Dimensions | 132.05 x 0.82 x 36.5 feet |
| Program Version | 5.27.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
