Complete parameterization of pile geometry, incorporation of helical surface and elastic supports.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.

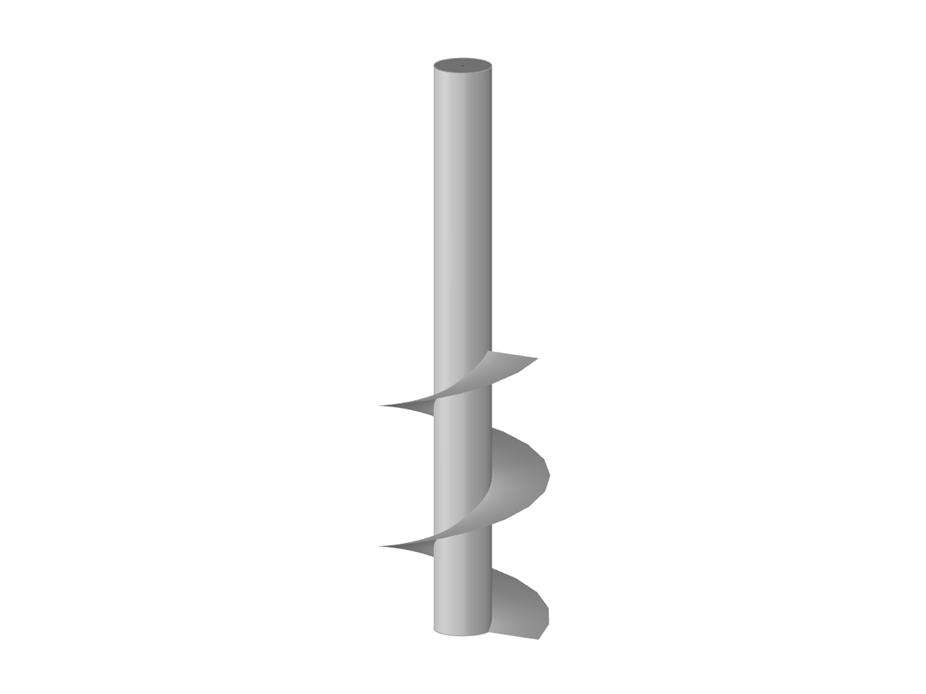

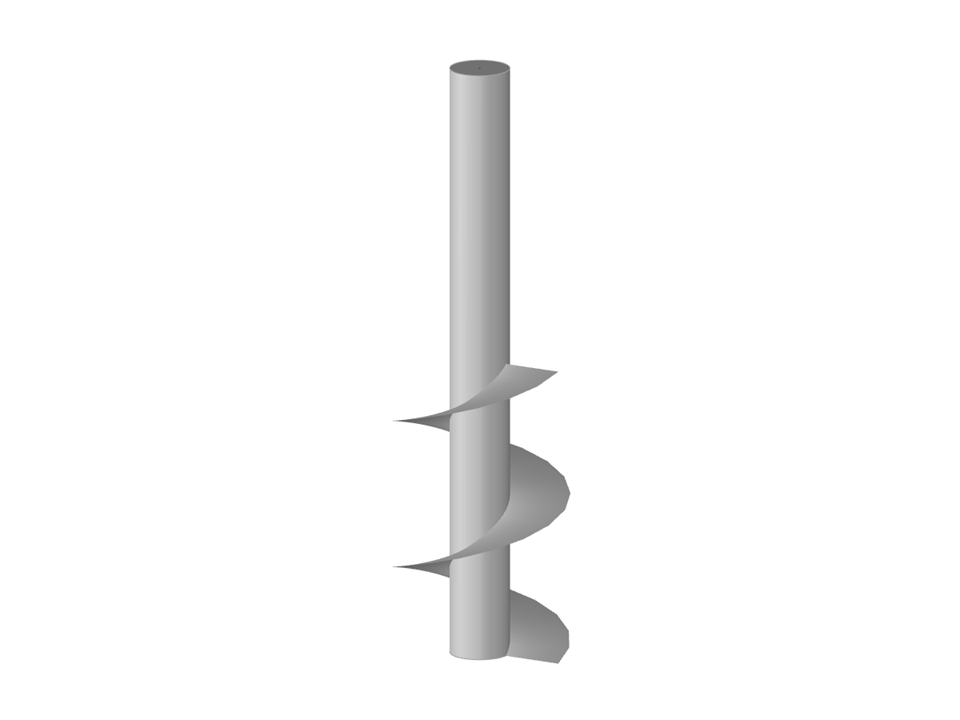

Helical Pile
| Block parameters editable dynamically | |
| Number of Nodes | 12 |
| Number of Lines | 9 |
| Number of Members | 2 |
| Number of Surfaces | 4 |
| Number of Solids | 1 |
| Total Weight | 34.886 tons |
| Dimensions | 26 x 26.05 x 44.56 feet |
| Program Version | 5.27.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
