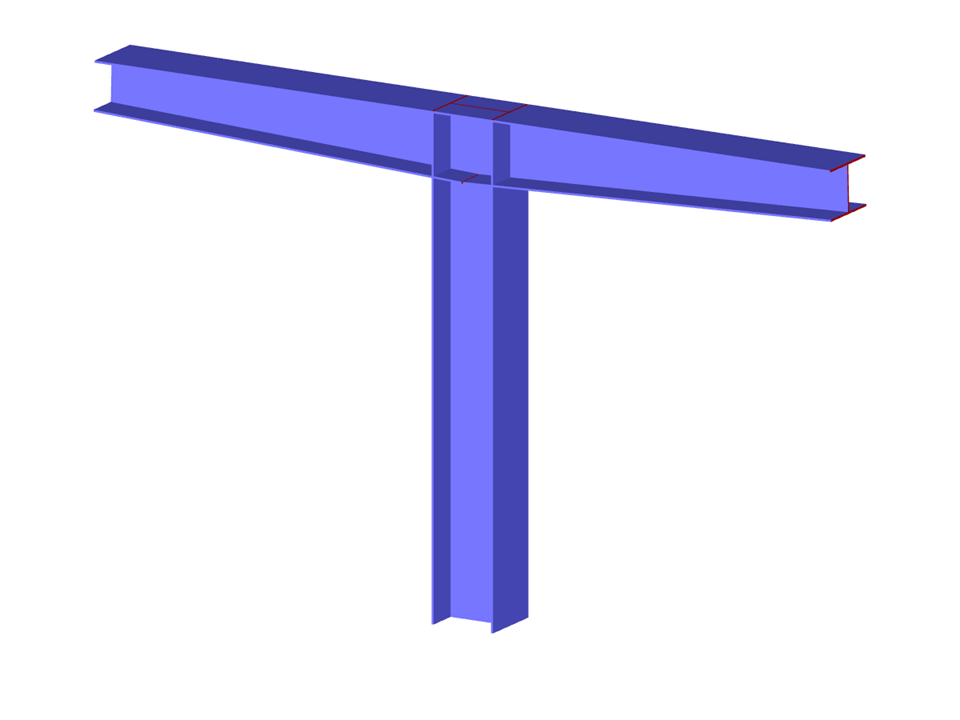

Parameterization of the geometry of a T-shaped column formed by a steel column and two variable section steel cantilevers, including permanent loads and use overload.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
T-Column
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Load Cases | 3 |
| Total Weight | 0.056 tons |
| Dimensions | 6.3 x 0 x 3.94 feet |
| Program Version | 5.24.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
