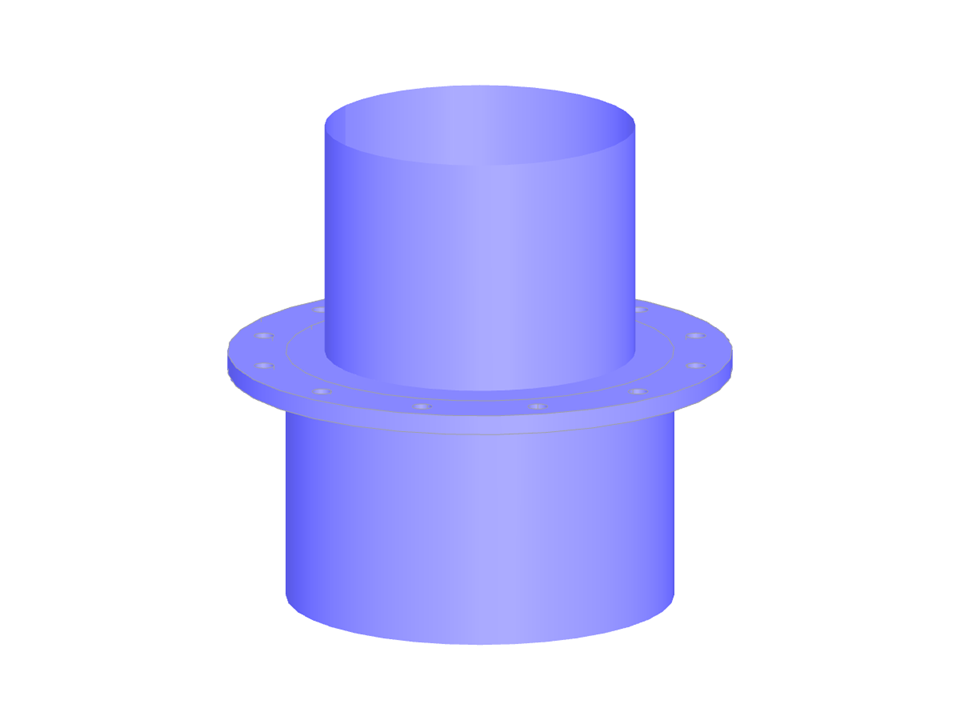

Parameterization of the geometry of a connection of two circular section steel column with sections of different diameters through a flange with twelve connection bolts.
A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Column Joint
| Block parameters editable dynamically | |
| Number of Nodes | 117 |
| Number of Lines | 59 |
| Number of Members | 12 |
| Number of Surfaces | 43 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0.754 tons |
| Dimensions | 7.79 x 7.77 x 6.54 feet |
| Program Version | 5.26.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
