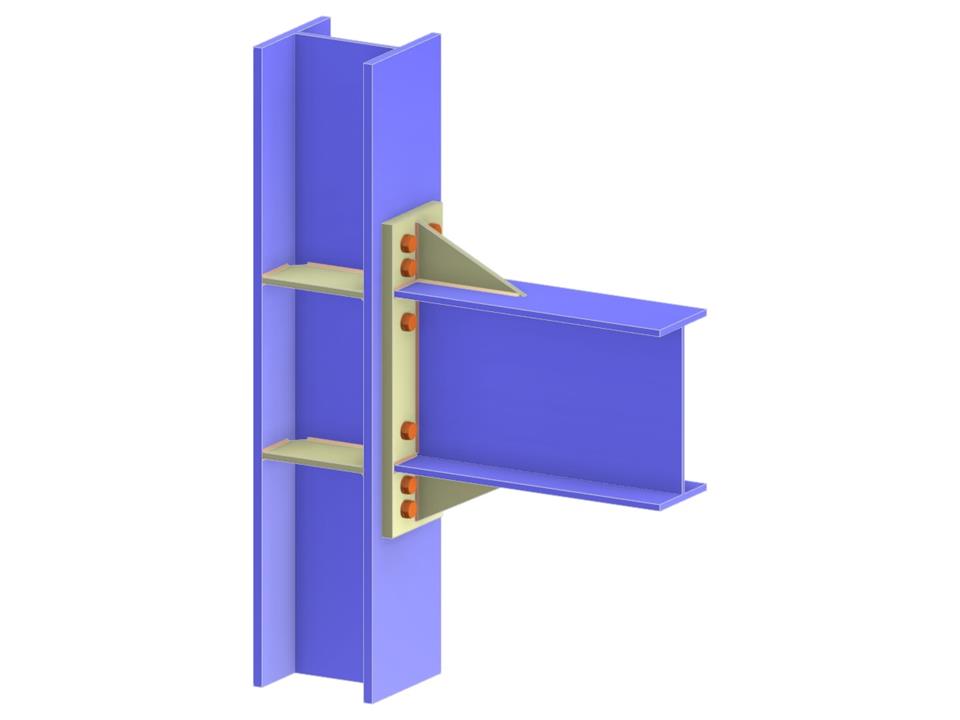

This model features a single-sided beam to column connection, focusing on the integration of an extended end plate and a rib. The design includes a continuous column with a bolted, fixed beam configuration. Additionally, column stiffeners are incorporated to enhance rigidity and support. The connection setup ensures robust structural performance.
Beam to Column Flange Connection via Extended End Plate and Rib
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.099 tons |
| Dimensions (Metric) | 0.630 x 1.060 x 0.000 m |
| Dimensions (Imperial) | 2.07 x 3.48 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
