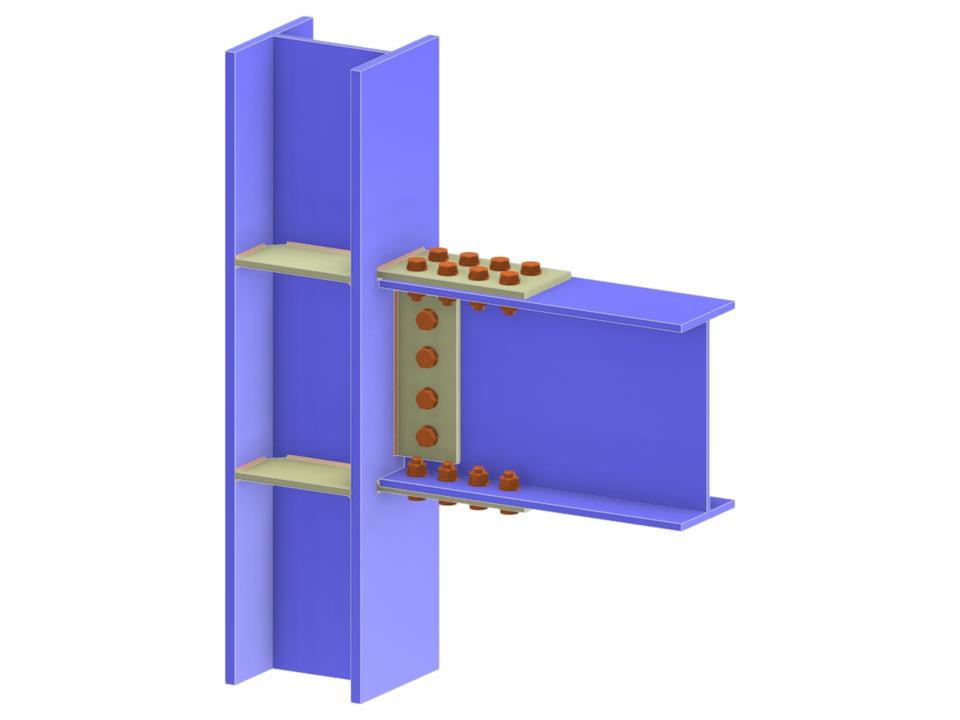

This model showcases a single-sided beam to column flange connection featuring a continuous column, fin plate, and flange plate. The connection is bolted and designed with a fixed beam configuration, illustrating typical structural steel joint components. It is useful for understanding the load transfer and anchorage in flange connections.
Beam to Column Flange Connection via Fin Plates
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.090 tons |
| Dimensions (Metric) | 0.610 x 0.940 x 0.000 m |
| Dimensions (Imperial) | 2 x 3.08 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
