The model features a truss with a vertical to chord T-joint. It includes gusset plates, tongue plates, and cap plates, all connected with bolts. The structure employs hollow cross-sections using rectangular hollow sections (RHS). The design focuses on ensuring robust connections and stability under load conditions.

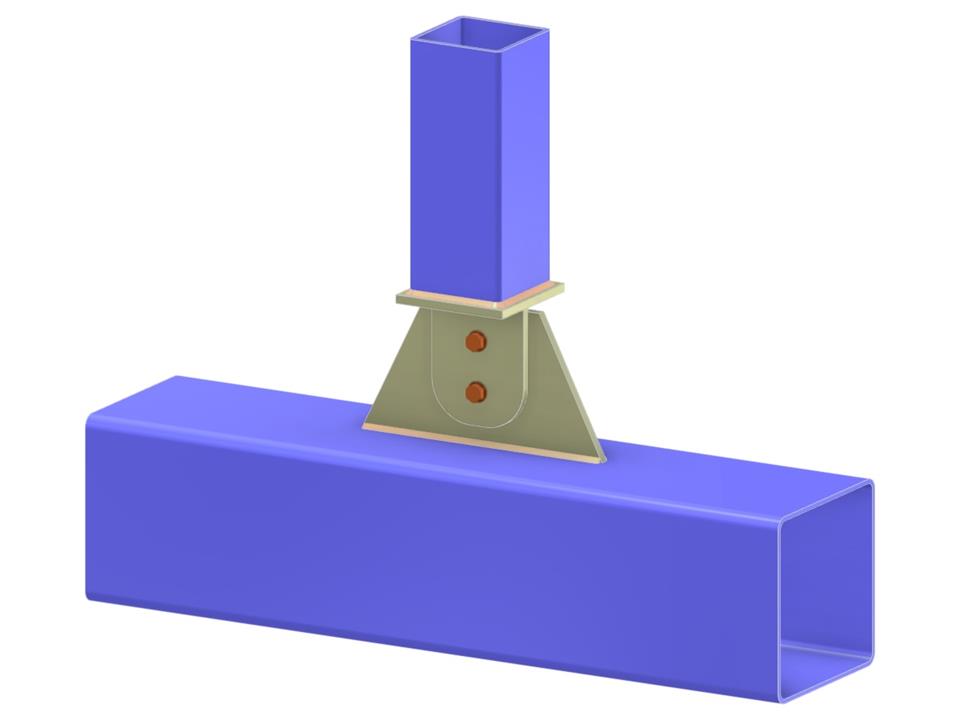

Truss T-Joint | Vertical to Chord Connection via Gusset Plate and Tongue Plate
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.042 tons |
| Dimensions (Metric) | 0.940 x 0.600 x 0.000 m |
| Dimensions (Imperial) | 3.08 x 1.97 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
